GEN 5 T-Style Radio for 2014-20 Toyota Tundra

APPLICATIONS:

• 2014-2020 Toyota Tundra w/Base or JBL amplified audio systems

Factory Features Retained: (if present)
USB ports
Steering Wheel Controls
Factory Rear Camera
Manual HVAC Controls (will not convert MANUAL to DUAL controls)
Dual HVAC Controls
Heated seats
Cooled seats
JBL Audio System

Factory Features NOT Retained: (if present)
Satellite radio
HD radio
CD Player
Driver Information Center radio & navigation displays

NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.

Installation Video:

Bottom Bolt Access:

When installing the bottom bolts on the brackets attached to the radio, access for them will be gained by removing the two blank plugs on the face of the radio:

NOTE: pop these covers off from the back prior to mounting the radio so you don’t have to try and pry them out later. :- )

2020 Tundra Factory Amp Turn-on:

On Non-JBL 2020 Tundras, you may have a factory amplifier that runs the speakers in all four doors that may not be triggered properly in the Linkswell harness. This will result in sound coming from ONLY the front and rear tweeters. If this is the case, you will need to verify that the factory amplifier is being turned on.

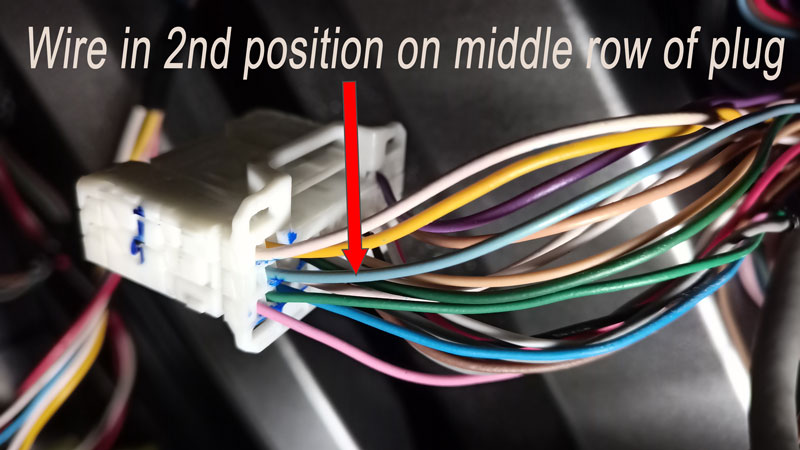

There is a factory amp turn-on wire in the factory harness (as show below) that requires a 12 volt input to turn on the factory amplifier. If this lead is not populated on your 2020 Tundra Linkswell harness, you will need to tap the ORANGE “AMP EN” lead from the Linkswell harness into the SKY BLUE factory wire as shown below:

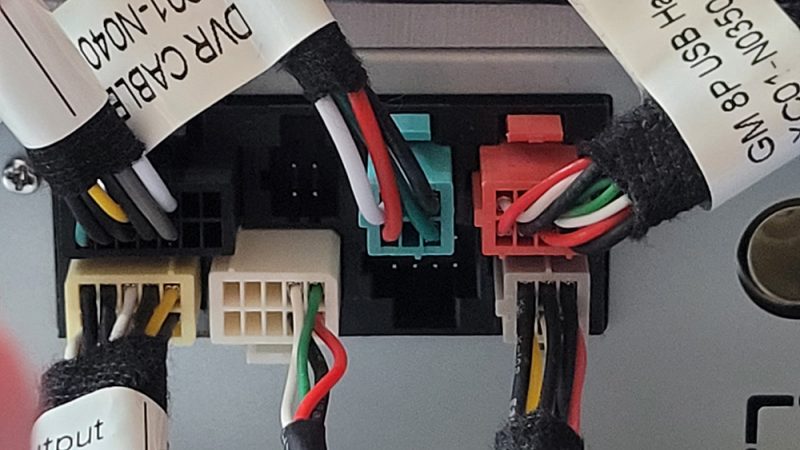

Accessory Plug configuration:

Turn off Notification Chimes:

Bypass “Accept” Button:

Go to “Settings” > “System” > “Factory Settings” > passcode 1660 > “Install Set” > scroll to the bottom and turn on demo mode. Save and reboot

Linkswell Tech Tip Videos:

The Linkswell GEN4 T-Style radio system comes with the Google Maps app pre-installed for use as the default navigation system, though any navigation app that can be downloaded from the Google Play store can be installed and used as the default system as well. In addition, using the “PhoneLink” app, you can use any compatible Car Play or Android Auto app on your phone for navigation.

NOTE: USING ANY ANDROID NAVIGATION APP ON THE RADIO OR YOUR PHONE WILL REQUIRE INTERNET CONNECTIVITY AND WILL CONSUME DATA.

This means that in order to run Google Maps or any other Android GPS app you have installed on the radio, you must have a data hotspot in the vehicle and paired to the radio – this can be the factory data hotspot, your phone, a portable hotspot, etc.

IGO NEXT GEN NAVIGATION UPGRADE

The iGo Next Gen Navigation system upgrade gives you the ability to navigate without consuming data and is pre-installed on your system – it just needs the license file to make it active.

Adding the license is an extra-cost option that can be added when you order, or you can activate the iGo system after your purchase.

In order to do the upgrade after you have purchased the system, here’s the process:

• Run the “Dev Info” app and on the screen that opens, the “IMEI” number will be shown at the bottom left of the screen
• Copy the IMEI number EXACTLY. NOTE: There are no refunds for licenses generated for the wrong IMEI number!
• Purchase the iGo license here: https://www.adcmobile.com/product/igo-nextgen-navigation-upgrade-for-t-style-radios/
• Provide the IMEI number of your unit during checkout
• We will forward your IMEI number to the manufacturer
• The manufacturer will generate the license (.lyc file) and we will email it to you
• Follow the instructions below to install

Installation of iGo Next-Gen navigation license file:

• Save the “lyc” file we send you to a USB stick
• Insert the USB stick into a USB port in the truck
• Open File Manager app
• You will have “FLASH” and “USB” drive icons on the left column – click on the “USB” drive
• You should now see the “.lyc” file you copied to the USB drive – tap on the box on the far right of the file name to highlight the file (this adds a checkmark to the box)
• Hit the “Copy” icon (bottom of screen – icon on left)
• Tap the “Flash” icon (top left)
• Tap “iGo” folder to open it
• Tap the “license” folder to open it
• Tap the “Paste” icon (bottom of screen – icon on left) – this will paste the file into the “license” folder
• Now start the iGo system and it will walk you through the setup process

If you want iGo to be the default navigation app, open “Settings”. The navigation icon (top icon) should be lit. Double-tap the iGo NextGen icon in the list at right. Tap the checkmark to verify your selection. iGo will now open when you touch the “Navi” icon on the bottom bar or on the Home screen.

PRODUCT WARRANTY: 1 YEAR

NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the One-Year limited warranty.

Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.

If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.
