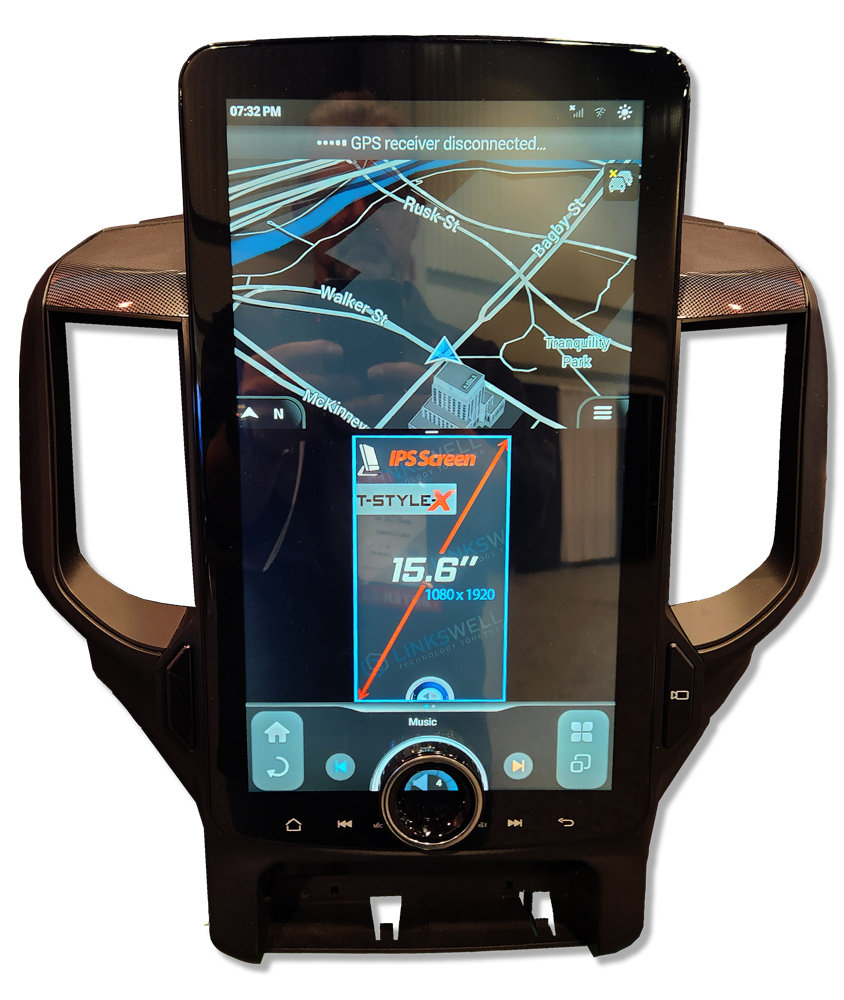

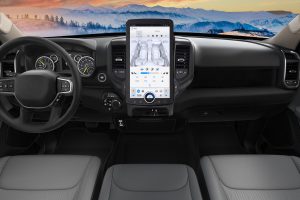

XL “T” Style Radio for 2019-22 RAM Trucks

APPLICATIONS:

• 2019-2022 RAM 1500/2500/3500/4500 (with 5″ or 8.4″ factory screen only)

2022 model year trucks require optional 2022 harness

Factory Features Retained: (if present)

USB Ports
Steering wheel controls
Factory backup camera
Factory rear sensors w/audio feedback
Manual HVAC controls (will not convert MANUAL to DUAL controls)
Dual HVAC controls
Factory heated seats
Factory cooled seats
Factory remote start

Factory Features NOT Retained: (if present)

UConnect features
Satellite radio
HD radio
RAM Air Ride settings on touchscreen
Driver Information Center radio & navigation displays
Factory Microphone
Voice Command button on the steering wheel
Ram Trailer Package touch screen settings (compatibility is under development)
Electronic Emergency Brake Service (must reconnect factory screen to retain this feature)

NOTE: The factory 12″ screen has different trim and cannot be changed out to this unit without sourcing factory trim for the 5″ or 8.4″ screen.

NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.

If you are planning to add a SIM card to your unit to give it its own cell plan, here are some tips to help you get through the process of sourcing your SIM card as easily as possible:

Just about every cell provider will want you to provide an “IMEI” number to purchase a SIM card for use in any device. This radio’s IMEI number is one digit too short to be a valid number, so even if you supply it, the number will come back as invalid, so there is no use in even logging it or giving it to your provider – IT WILL NOT WORK.

What you will need to do is to go to a FACTORY STORE (Verizon, T-Mobile, ATT, etc.) and NOT a franchise store, and ask to see the store manager.
DON’T WASTE YOUR TIME ON A FLOOR SALESPERSON, AS THEY GENERALLY WILL NOT KNOW HOW TO DO WHAT YOU NEED.
Tell them you need a “BYOD” (Bring Your Own Device) SIM Card. Tell them you do not have an IMEI number for it. Tell them it is a standard tablet. Do not mention that it is a radio – this will only confuse them and prolong the process!

They may argue that they need an IMEI to get a card activated – this is not true. If they refuse to provide a card, go to another factory store and ask to see the manager. Eventually, you will be able to find a person to provide a “BYOD” SIM card.

Once you have the SIM card, pop it into the radio’s SIM Card slot and do a hard reset (paper clip in the RST hole), and it should report as soon as the the radio reboots. You can check this by going to Settings>System>Android Settings>Connections>SIM Card and verifying a phone number on SIM1.

ATT SUBSCRIBERS:

ATT SIM cards need to treat the radio differently than other devices and will require a different configuration to be entered in the Android “Connections” section.

See this support article for more information and configuration instructions: https://www.att.com/support/article/wireless/KM1062162

ADC Mobile Podcast with Linkswell

YouTube Music App Demo:

Installation Video:

Customize Wallpaper:

Add SIM Card:

Wireless Car Play on XL/GEN6:

Wireless Android Auto on XL/GEN6:

DSP Features on XL/GEN6:

Split Screen on XL/GEN6:

Wi-Fi on XL/GEN6:

Customize Home Page on XL/GEN6:

PRODUCT WARRANTY: 2 YEARS

NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the Two-Year limited warranty.

Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.

If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.
