GEN 5 “T” Style Radio for Jeep Grand Cheerokee
TS-JPGC12-1RR-5S$1,495.00
- NEW: Wireless Car Play/Android Auto
- NEW: Upgraded DSP & EQ
- NEW: Android 9.0
- NEW: SPDIF (Optical) output
- NEW: Master Bluetooth Control, Hands-Free, A2DP
- NEW: High Current USB charging
- NEW: 2.4/5GHZ Wi-fi compatible
- 12.1″ HD touch screen Android Tablet
- AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
- 3 USB inputs (1 factory input, 2 auxiliary)
- BT 5.0 w/APTX Loss Less Music Streaming
- HDMI Out
- USB Music and Video player w/HD Video and Video in motion options
- 4X45 Watt built-in amplifier w/DSP & EQ
- 5 Volt RCA Preouts (Front, Rear, Sub)
- On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
- Retain vehicle factory reverse cameras
- Retains Factory Alpine System
- Retains Factory CD player
- Add aftermarket front, rear or right cameras
- Display factory parking sensors (if equipped)
- WIFI for web browser, app download and use.
- App List w/Google Play Store for personal app downloads
- SiriusXM Ready
- UNLIMITED INSTALLATION PHONE SUPPORT AND ACCESS TO OUR TECH DATABASE
- PLEASE REVIEW APPLICATIONS & COMPATIBILITY BELOW PRIOR TO PURCHASE
NOTE: DUE TO PRICING DISPLAY RESTRICTIONS, ACCESSORIES DISPLAYED BELOW WILL HAVE AVAILABLE DISCOUNTS APPLIED IN THE CART – PLEASE ADD TO CART TO SEE FINAL PRICING
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
- Description
- APPLICATIONS & COMPATIBILITY
- Downloads
- Tips & Tricks
- Video
- iGo Next-Gen Navigation Upgrade
- Warranty
- Support & Policies

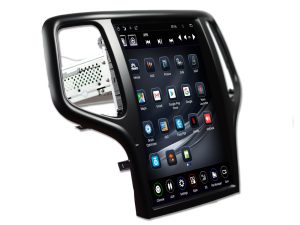

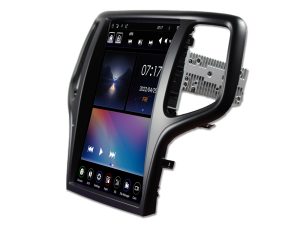

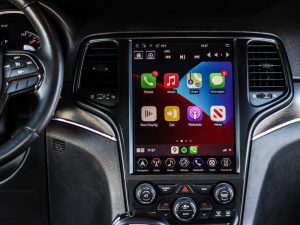

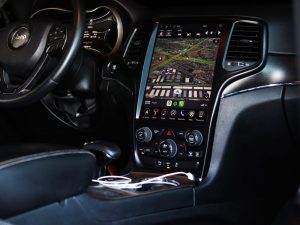

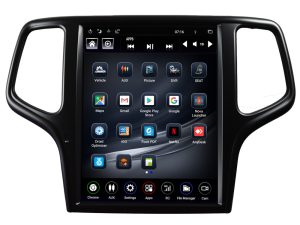

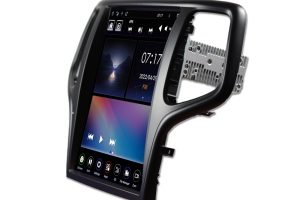

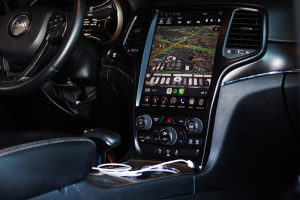

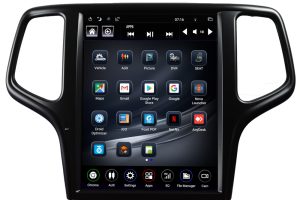

The Linkswell GEN5 T-Style multimedia center replaces the factory display screen and climate control center in the Jeep Grand Cherokee, enhancing the dash with a 12.1-inch, multi-touch panel encased in a factory-match bezel. The climate controls are embedded into the bezel, allowing the driver to access all related features, as well as physical volume and tuning knobs.
The Android™ 9 powered multimedia center is optimized to display relevant information with minimal distraction. Google Maps is pre-installed, and your choice of Android navigation apps (such as Waze) can be installed to give you live updates while driving (internet connection required – via dedicated or phone hotspot). In addition to using the T-Style’s built-in AM/FM tuner, drivers can utilize the factory USB port to connect smartphones, and an additional USB connector for flash media. Bluetooth® connectivity enables hands-free phone calls and wireless music streaming, as well as master control of outboard devices such as Bluetooth lighting, relays or amplifier app controls!

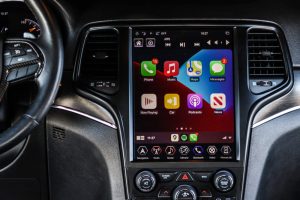

The GEN 5 now allows iPhone users to activate and use Car Play (Apple) and Android Auto WIRELESSLY to enjoy a seamless experience using the power of your smartphone for additional features of each system.
By connecting the Linkswell GEN5 T-Style to a mobile or smartphone Wi-Fi hotspot, users can access the Internet through a browser that displays full web pages with multiple tabs and search capability. They can also use their subscription-based streaming services — Pandora® Internet Radio, SiriusXM® Satellite radio, Spotify® and more — by downloading the Android-compatible apps onto the unit’s 64GB of internal storage or add an outboard Sirius/XM tuner to add satellite radio (SXM connector provided – future firmware update required to activate).
For safety, the Linkswell GEN5 T-Style has three dedicated camera inputs for optional front, rear and passenger-side camera views. The reverse camera switches when the vehicle shifts into reverse gear, the right side camera when the right turn signal is applied, and the front camera is manually operated.
- “Tablet-style” form factor
- Upgraded DSP & EQ
- Physical A/C Controls, Volume and Tuning Knobs
- Wireless CarPlay/Android Auto
- RCA and TOSLINK (optical) outputs
- 5.2v USB charging
- Master Bluetooth System: Hands Free Calling, Music Streaming, and control outboard devices
- Use Google Maps/Waze or other apps for LIVE navigation
- AM/FM Radio (18 FM Presets, 12 AM Presets, Plus “My Favorite Station” Buttons)
- On-Screen Ambient Lighting, Factory Massaging Seats, Heated/Cooled Seat Controls
- Watch Movies through USB Ports (PIP Option)
- Wifi Capabilities: .4/5 GHZ compatible, Search Internet, Receive and Send Emails, Catch up on your Facebook Accounts, etc. (requires hotspot or phone for internet)
- Apps Tab: Download your favorite Apps on the Android 9 Tablet
- 3 Camera Inputs: Rear, Front & Right
- HDMI output
APPLICATIONS:
- 2014-2021 Jeep Grand Cherokee
Factory Features Retained: (if present)
USB Ports
Steering wheel controls
Factory backup camera
Parking Sensors
Factory Features NOT Retained: (if present)
UConnect features
Satellite radio
HD radio
Driver Information Center radio & navigation displays
SRT settings
Factory Microphone
Voice Command button on the steering wheel
NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.
Setup Guide
Radio Settings Guide
Turn off Notification Chimes:
Bypass “Accept” Button:
Go to “Settings” > “System” > “Factory Settings” > passcode 1660 > “Install Set” > scroll to the bottom and turn on demo mode. Save and reboot
Linkswell Tech Tip Videos:
The Linkswell GEN4 T-Style radio system comes with the Google Maps app pre-installed for use as the default navigation system, though any navigation app that can be downloaded from the Google Play store can be installed and used as the default system as well. In addition, using the “PhoneLink” app, you can use any compatible Car Play or Android Auto app on your phone for navigation.
NOTE: USING ANY ANDROID NAVIGATION APP ON THE RADIO OR YOUR PHONE WILL REQUIRE INTERNET CONNECTIVITY AND WILL CONSUME DATA.
This means that in order to run Google Maps or any other Android GPS app you have installed on the radio, you must have a data hotspot in the vehicle and paired to the radio – this can be the factory data hotspot, your phone, a portable hotspot, etc.
IGO NEXT GEN NAVIGATION UPGRADE
The iGo Next Gen Navigation system upgrade gives you the ability to navigate without consuming data and is pre-installed on your system – it just needs the license file to make it active.
Adding the license is an extra-cost option that can be added when you order, or you can activate the iGo system after your purchase.
In order to do the upgrade after you have purchased the system, here’s the process:
- Run the “Dev Info” app and on the screen that opens, the “IMEI” number will be shown at the bottom left of the screen
- Copy the IMEI number EXACTLY. NOTE: There are no refunds for licenses generated for the wrong IMEI number!
- Purchase the iGo license here: https://www.adcmobile.com/product/igo-nextgen-navigation-upgrade-for-t-style-radios/
- Provide the IMEI number of your unit during checkout
- We will forward your IMEI number to the manufacturer
- The manufacturer will generate the license (.lyc file) and we will email it to you
- Follow the instructions below to install
Installation of iGo Next-Gen navigation license file:
- Save the “lyc” file we send you to a USB stick
- Insert the USB stick into a USB port in the truck
- Open File Manager app
- You will have “FLASH” and “USB” drive icons on the left column – click on the “USB” drive
- You should now see the “.lyc” file you copied to the USB drive – tap on the box on the far right of the file name to highlight the file (this adds a checkmark to the box)
- Hit the “Copy” icon (bottom of screen – icon on left)
- Tap the “Flash” icon (top left)
- Tap “iGo” folder to open it
- Tap the “license” folder to open it
- Tap the “Paste” icon (bottom of screen – icon on left) – this will paste the file into the “license” folder
- Now start the iGo system and it will walk you through the setup process
If you want iGo to be the default navigation app, open “Settings”. The navigation icon (top icon) should be lit. Double-tap the iGo NextGen icon in the list at right. Tap the checkmark to verify your selection. iGo will now open when you touch the “Navi” icon on the bottom bar or on the Home screen.
PRODUCT WARRANTY: 1 YEAR
NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the One-Year limited warranty.
Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.
If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
