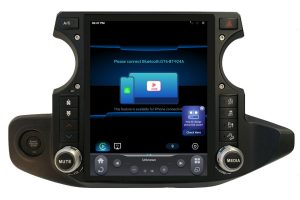

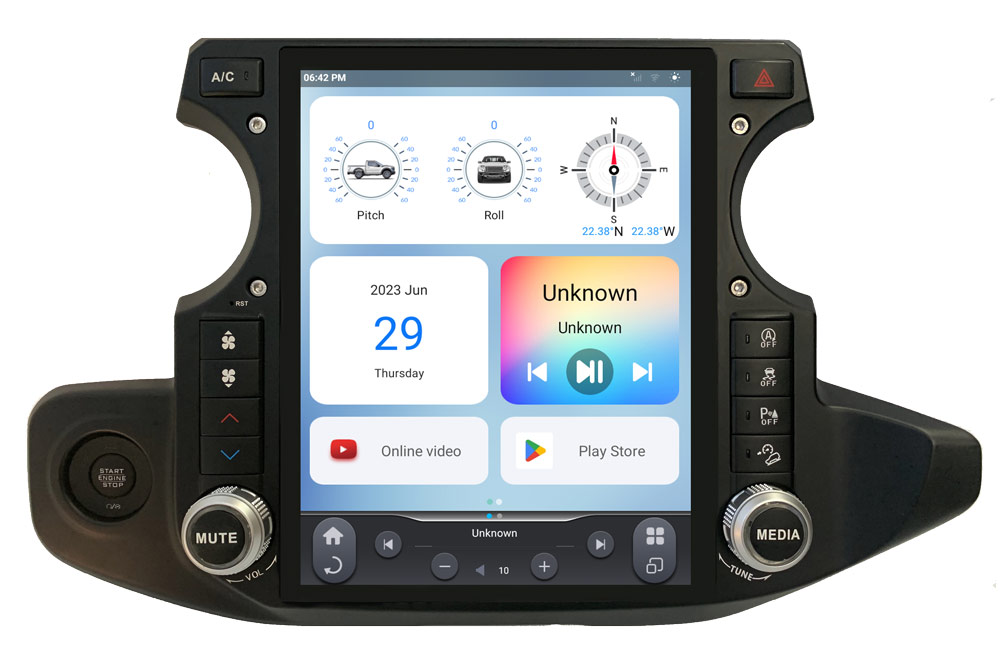

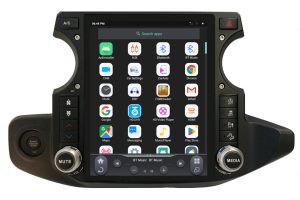

GEN 6 “T” Style Radio for Jeep JL/Gladiator

APPLICATIONS:

• 2018-2021 Jeep Wrangler JL
• 2020-2021 Jeep Gladiator

Factory Features Retained: (if present)

USB Ports
Steering wheel controls
Factory backup camera (NOTE: FRONT TRAIL CAM IS NOT SUPPORTED)
Manual HVAC controls (will not convert MANUAL to DUAL controls)
Dual HVAC controls
Parking Sensors
Start-Stop controls (adds full-time override as well)
Terrain Controls
Terrain Displays

Factory Features NOT Retained: (if present)

UConnect features
Satellite radio
HD radio
Driver Information Center radio & navigation displays
Dual Mode Exhaust button (392 engine)
Factory Microphone
Voice Command button on the steering wheel
Front “Trail Cam”

NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.

Installation Manual (ALL MODELS):

Install Video (GEN5):

Off-Road Cameras:

OnX Off-Road App:

Customize Wallpaper:

Add SIM Card:

Wireless Car Play on XL/GEN6:

Wireless Android Auto on XL/GEN6:

DSP Features on XL/GEN6:

Split Screen on XL/GEN6:

Wi-Fi on XL/GEN6:

Customize Home Page on XL/GEN6:

If you are planning to add a SIM card to your unit to give it its own cell plan, here are some tips to help you get through the process of sourcing your SIM card as easily as possible:

Just about every cell provider will want you to provide an “IMEI” number to purchase a SIM card for use in any device. This radio’s IMEI number is one digit too short to be a valid number, so even if you supply it, the number will come back as invalid, so there is no use in even logging it or giving it to your provider – IT WILL NOT WORK.

What you will need to do is to go to a FACTORY STORE (Verizon, T-Mobile, ATT, etc.) and NOT a franchise store, and ask to see the store manager.
DON’T WASTE YOUR TIME ON A FLOOR SALESPERSON, AS THEY GENERALLY WILL NOT KNOW HOW TO DO WHAT YOU NEED.
Tell them you need a “BYOD” (Bring Your Own Device) SIM Card. Tell them you do not have an IMEI number for it. Tell them it is a standard tablet. Do not mention that it is a radio – this will only confuse them and prolong the process!

They may argue that they need an IMEI to get a card activated – this is not true. If they refuse to provide a card, go to another factory store and ask to see the manager. Eventually, you will be able to find a person to provide a “BYOD” SIM card.

Once you have the SIM card, pop it into the radio’s SIM Card slot and do a hard reset (paper clip in the RST hole), and it should report as soon as the the radio reboots. You can check this by going to Settings>System>Android Settings>Connections>SIM Card and verifying a phone number on SIM1.

ATT SUBSCRIBERS:

ATT SIM cards need to treat the radio differently than other devices and will require a different configuration to be entered in the Android “Connections” section.

See this support article for more information and configuration instructions: https://www.att.com/support/article/wireless/KM1062162

All firmware updates are done on demand, Over The Air (OTA) on the radio – no USB memory stick is required – but a connection to a high-speed Wi-Fi network is HIGHLY recommended. Generally, we don’t recommend checking for updates when connected to a hotspot or cell network.

To check for updates, make sure you are connected to a high-speed network and go to Settings>System>Upgrade and check for each section there.

If there are new updates, it will present them and ask if you want to update.

Only update one section at a time and make sure the radio reboots after every update.

• 12.1″ HD touch screen Android Tablet
• SIM Card slot
• Android 11
• 4 GB RAM
• 64GB Memory
• HDMI Input
• BT 5.0, Hands-Free, A2DP
• AM/FM tuner w/RDS
• 1080P Video
• 4X45 Watt built-in amplifier w/DSP & EQ
• SPDIF output
• HDMI input – available with optional module
• PhoneLink System (Apple & Android compatible)
• 3 USB Inputs (retains 1 or 2 Factory, 1 universal)
• On Screen climate controls
• Retain vehicle’s factory reverse cameras
  • Add aftermarket front, rear or right cameras
• Display factory parking sensors (if equipped)
• WI-FI for web browser, app download and use.

PRODUCT WARRANTY: 1 YEAR

NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the One-Year limited warranty.

Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.

If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.
