Brand:ZNA

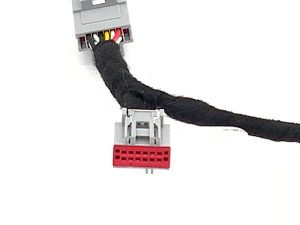

2019-21 Ford Transit Mid / High Roof Camera Relocation T-Harness
002-034$67.00
-
The Ford Transit Mid / High Roof T-Harness allows you to connect a camera to the built-in radio/display in your van while retaining the function of the factory Center High Mounted Stop Light (CHMSL) when the factory camera is made ineffective due to a loading gate or other obstruction on the vehicle.
By utilizing the factory wiring, your install will have OEM quality and the install time will be dramatically reduced.
Combined with one of our many extension harnesses, you can put the camera wherever your application needs.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
- Allows you to connect a Zorg camera to your vehicle’s OEM radio/display
- Plug and Play installation requires no splicing
- Harness uses OEM quality connector and terminals
- Harness is covered with PET Braided Sleeve for protection and easier installation
- Includes 1 packet of dielectric grease
APPLICATIONS:
2019-2021 Ford Transit (Mid/High Roof Only)
This harness is designed be connected to the factory camera connector on the vehicle to connect ZNA cameras or other cameras that have the same wiring, output format and video resolutions – IT IS NOT DESIGNED TO BE USED WITH FACTORY CAMERAS AND WILL NOT WORK WITH FACTORY CAMERAS!Â
If you are not adding a ZNA camera, please see the “Wiring Diagram” tab to view pin assignments to determine if your camera can be used with the harness.
NOTE: We cannot accept returns for product that has been installed prior to determining your camera was not compatible. Please insure your application is valid prior to attempting the installation.
| This OEM integration harness is terminated with the connector shown at right – a FEMALE plug with MALE pins – with the pin assignments as shown. If you are working with a non-ZNA camera please confirm the same pin assignments on your camera, or look at using the ZNA-4107 Male Pigtail Harness to allow for a custom connection. |  |
| This OEM integration harness is compatible with ZNA cameras or other cameras that have the plug shown at right – a MALE plug with FEMALE pins – with the pin assignments as shown. If you have a ZNA camera and want to use a non-ZNA harness, look at using the ZNA-4106 Female Pigtail Harness for a custom connection. |  |
PRODUCT WARRANTY: 3 YEARS
- Harness length is 7in.
- Harness uses an overmolded male 4-pin aviation connector.
- Harness is covered with PET Braided Sleeve
- Harness uses 20awg J1128 TWP wire
- Weight: 6Oz
- Package: 12in x 10in Zip Lock Bag
