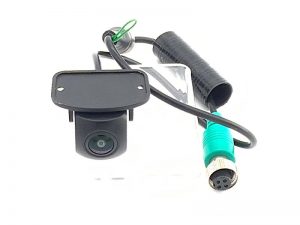

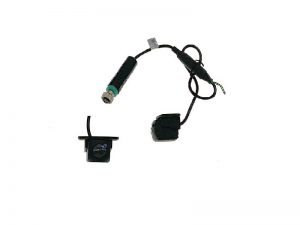

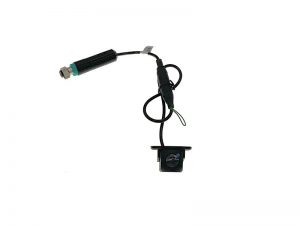

Adjustable HD Digital 190 Degree View Camera
2301
$159.00 See Price in Cart
Designed to be used with ZNA camera adapter harnesses.
This Electronic Adjustable Camera allows the installer to aim the point of view, rotate the view to adjust for installation surface angles, and adjust the park lines to accurately represent the vehicle.
The camera is VERY heavy-duty and can be mounted with either of the 2 brackets supplied.
With an aluminum body, -20°C ~ 70°C operating temperature, and IP69K Waterproof rating, this camera is designed for rough service environments.

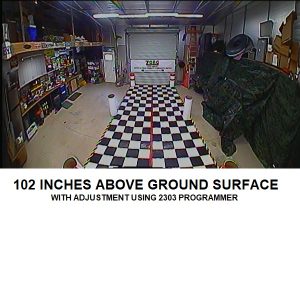

Using the 2303 Camera Programmer, you can adjust the camera angle and the parking lines to suit your needs.
Use the optional programmer to customize the installation and take advantage of the special features.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
- Ultra Wide 190 Degree Viewing Angle
- Digital imaging allows angle adjustment
- Use Programmer 2303 for adjustments (not Included)

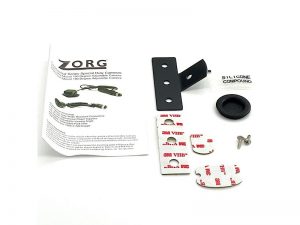

- Two Surface Mount Brackets Included
- HD 720P 1280*720 Image
- Micro Chassis (24x35x22mm)
- Aluminum Alloy Chassis
- IP69K Waterproof rated
- .01 Lux Low Light Vision
- UV Rated Poly Exterior and Molded Connectors
- Selectable Park Lines (Adjustable with Programmer 2303)
- Reversible image for Front or Rear Mounting. Cut Green Loop for front view
PRODUCT WARRANTY: ONE YEAR
- HD 4 Pin Connection
- 5 – 36Vdc Operating Voltage
- Operating Temperature: -20 ~ 70C
- Storage Temperature: -40 ~ 90C
- Lens Angle: Horiz-190 +/-3, Vertical-90 +/-5
- 18” Cable
- Size: 29w x 26.5h x 34d mm
- Weight: 3oz (Camera)
- Package: 7.4oz, 6.5” x 3.5” x 2”
- Master Carton Qty: 20
- UPC: 632138340934
