Universal Fender Mount Side View Cameras
CSV-01$129.00
Add universal side cameras to vehicles that have removeable doors or that are prohibitively labor-intensive to add cameras to the mirrors.

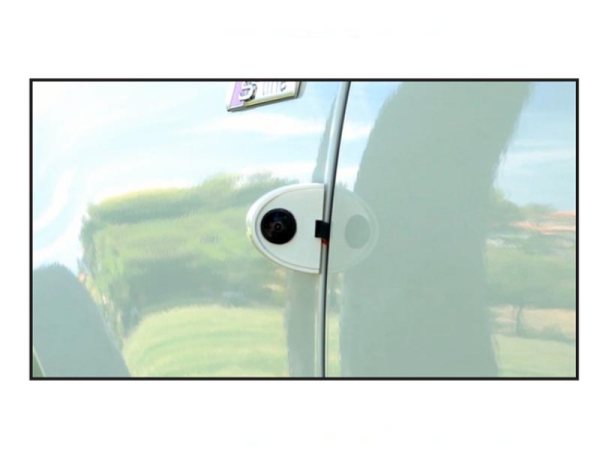

These cameras can be attached anywhere using the included double-sided 3M adhesive – to the vehicle fenders, rear quarter panels or bumper – anywhere you need clear side vision!

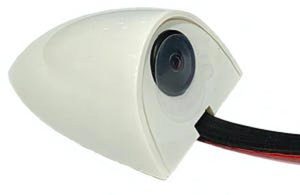

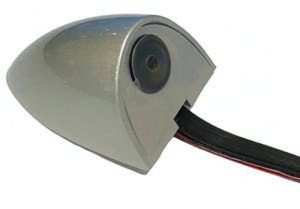

Cameras are available in four generic colors: Black, White, Charcoal Gray and Silver. Note that color match to any existing vehicle color is not guaranteed, but housings can be repainted to match your vehicle.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
AVAILABLE COLORS:
- Black
- White
- Charcoal Gray
- Silver
NOTE: Camera colors are not a guaranteed match for any vehicle color – we will not guarantee color compatibility for any vehicle.Optionally, cameras can be repainted to match your vehicle, and this is not included in purchase price.
PRODUCT WARRANTY: 1 YEAR
| Image Device | 1/3 CMOS PC2099 |
| Effective Pixels | 976(H) x 496(V) |
| Pixel Size | 5.00um x 7.40um |
| Effective Image Area | 4.88mm x 3.67mm |
| Interface – Composite Output – Digital Output – Analog/Digital Output | CVBS (NTSC) YCbCr422/RGB565/ RGB444/Bayer ITU-R. BT1302/CVBS |
| Input Clock Frequency | 27Mhz |
| Frame Rate | 60field / sec @ NTSC 50 field / sec @ PAL |
| Sensitivity | 10.8 [V/Lux.sec] |
| Power Supply | 6V to 18V |
| Power Consumption | 468mW @ Dynamic 363uW @ Standby |
| TV Lines | 600TV lines |
| TV Systems | NTSC |
| Operating Temperature | -20℃ – +85℃ RH95% MAX |
| Storage Temperature | -55℃ – +115℃ RH95% MAX |
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
