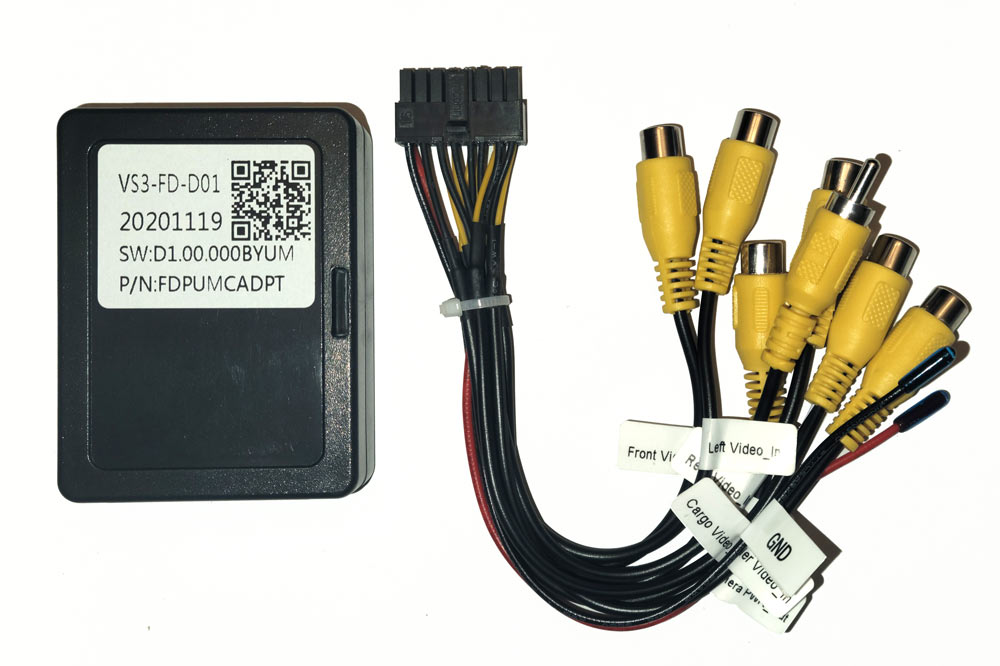

Ford 360 Camera Module for Aftermarket Cameras

In order to allow the radio to communicate with the FDPUCMADPT, the following update must be performed :

Download Link: https://www.dropbox.com/s/2o0qqtwrmvd1pe4/CAN-BOX%20Ford%20Mutl%20Camera%28FD-SS-D3%20D1.02.001BYPT6%202020-08-05%29.zip?dl=0

1. Download the “GENIV_F-Series_PlugBox.zip” file from the link above.
2. Extract the contents of the .zip file to your computer’s hard drive.
3. Format a USB drive to be sure that it is empty, then open the folder titled “GENIV_F-Series_PlugBox” and copy the file inside titled “simplecanupdate.bin” to the root of the USB.
4. Take the USB to the truck, turn the truck on and allow the system to boot up.
5. If inserted, remove all other USB devices.
6. Once the unit is booted up, plug the USB drive directly into one of the USB inputs.
7. Go to “Settings” then to “System”
8. Go down to “Factory Settings” and enter 1660.
9. Press the “Upgrade” button on the bottom left.
10. Press the “Simple Upgrade” button.
11. A status bar should show up showing the process of the update.
12. Once the update finishes the screen will flash off and back on.

Radio Settings:

1. Go to Settings
2. Go to System
3. Go to Setting Guide
4. Open Camera
5. Make sure Multi-Cam Interface is ON
6. Save and Reboot at the bottom of the screen

DIP Switch positions:

With the DIP switches on the side of the box, you can enable and disable the icons that are displayed on the screen when you switch to the Multi-cam input.

PRODUCT WARRANTY: 1 YEAR

NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the One-Year limited warranty.

Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.

If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.
