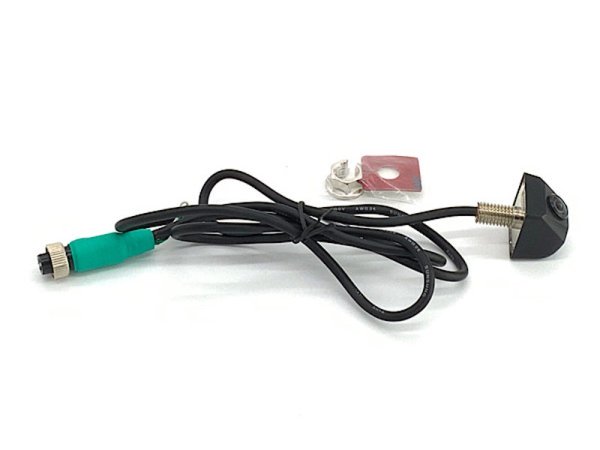

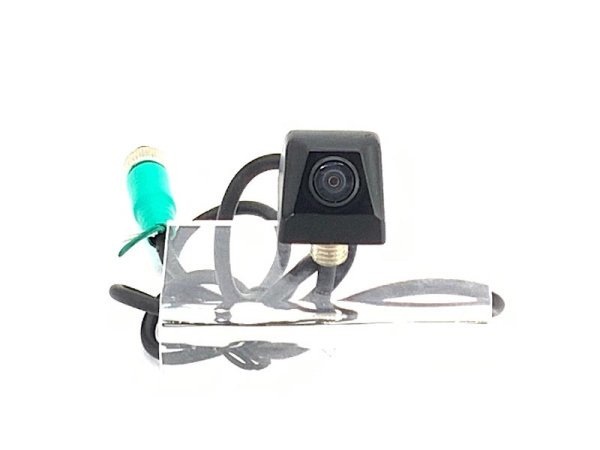

Rough Service Lip Mount 160 Degree View Camera
2404$145.00
-
The 2404 is designed for Rough Service applications where mounting a camera to look down and outward or “inverted” is required.
This allows mounting on the rear of a vehicle as well as on a rear Chassis Body, Salt Spreader, or other surfaces.
All-aluminum body, -10°C ~ 50°C operating temperature, and IP69K Waterproof rating.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
- 160 Degree Viewing Angle
- HD 720P 652×504 Image
- Chassis (28x23x30mm)
- Aluminum Alloy Chassis
- IP69K Waterproof rated
- .5 Lux Low Light Vision
- UV Rated Poly Molded Connectors
- Selectable Park Lines (On/Off)
- Inverted image for Rear or Side Mounting
- Includes Rubber Mounting Gasket
Must be used with ZNA adapter harnesses (w/4 pin green plug)
PRODUCT WARRANTY: 3 YEARS
NOTE: FAILURE TO USE INCLUDED DIELECTRIC GREASE MAY VOID WARRANTY
- HD 4 Pin Connection
- Center Mounted High Strength through bolt
- 6 – 24Vdc Operating Voltage
- Operating Temperature: -10 ~ 50C
- Storage Temperature: -20 ~ 60C
- Lens Angle: Horiz-160 +/-3, Vertical-95 +/-5
- 18” Cable
- Size: 28w x 23h x 30d mm
- Weight: 3oz (Camera)
- Package: 9oz, 6.5” x 3.5” x 2”
