LVDS (Digital) Camera Relocation Kit – 3rd Brakelight Housing Only
$119.00
- The ZORG 26003 CHMSL LVDS CAMERA HOUSING KIT is designed to accept domestic OEM LVDS tailgate cameras and standard upfitter cameras from Ford, Ram, and GM/GMC Trucks
- The ZORG 26006 CHMSL LVDS CAMERA HOUSING KIT is designed to relocate OEM LVDS tailgate cameras on 2022+ GM/GMC Trucks. See the 26003 for other applications.
- DOT Compliant CHMSL, FMVSS111 Compliant Viewing Angle for cameras
- NOTE: DOES NOT CONTAIN LVDS EXTENSION CABLE (SEE 4220/4250)
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC

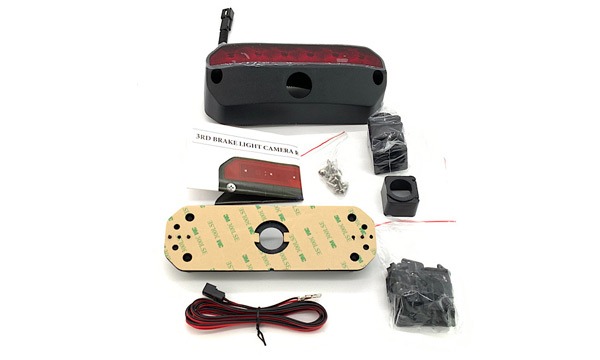

4220/4250 Kit Includes:
76″ Brake Lamp Extension Lead

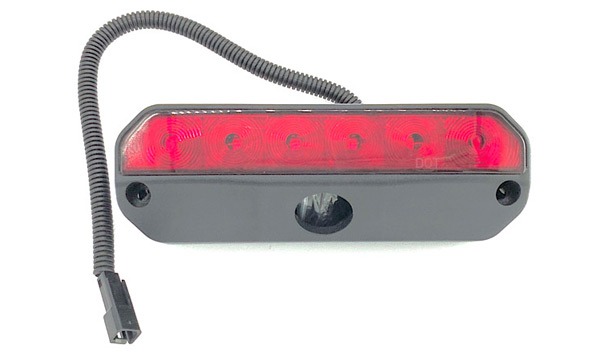

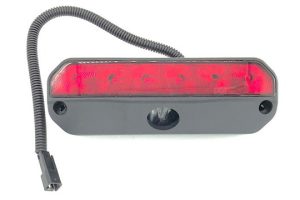

Housing and Backing Plate

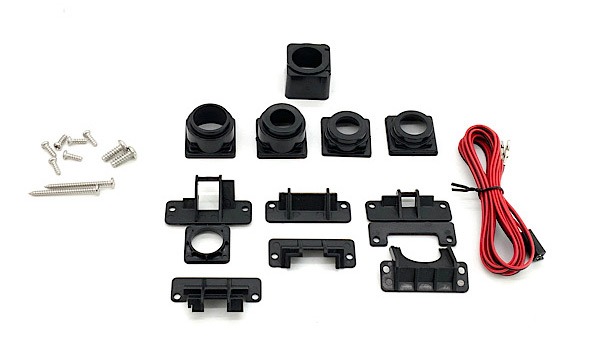

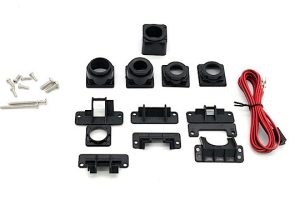

Camera Fit Adapters and Hardware
3M VHB Mounting Tape – Recommended using both tape and screws.
Housing Measurements: 7″L x 2.75″W x 2 1/8″D
Housing Material: Automotive grade ABS
APPLICATIONS:
- Ram 19-24 LVDS Cameras
- GM 19-24 LVDS Cameras (26003)
- GM 2024-26 LVDS non 360 (26006)
- Ford 17-24 LVDS Cameras
Unplug your existing factory tailgate camera under the truck.
Mount the camera assembly into the kit, then mount the kit to any flat surface.
Run the camera extension harness to the factory plug under the truck and connect.
Wire the brake light wiring to the factory brake light circuit.
PRODUCT WARRANTY: 1 YEAR
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
