Brand:EVI Systems
2020+ GM Work Truck Universal Rear Camera Kit – Surface Mount
$199.00
-

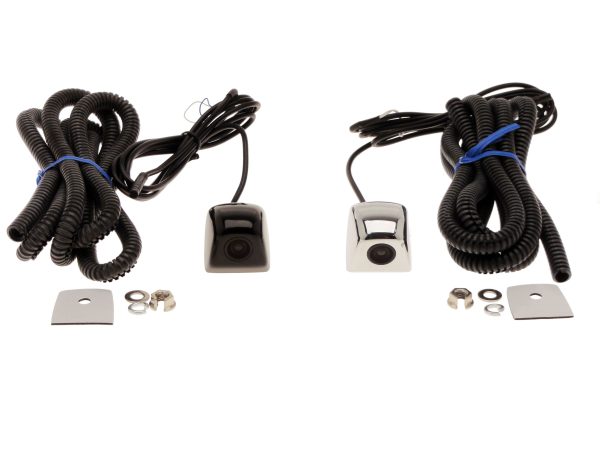

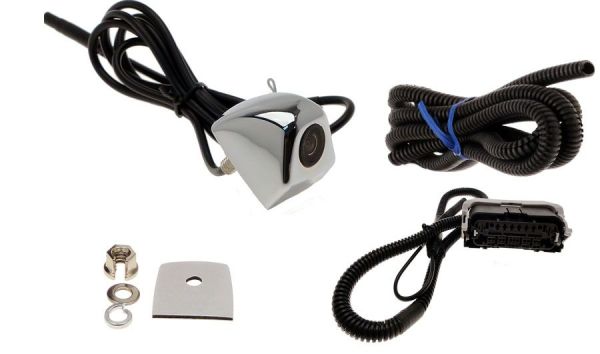

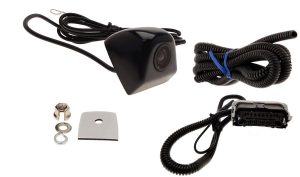

Kit includes the following:
Chrome or Black plated rear facing surface mount camera with our latest super CMOS camera – the latest camera technology!
Mounting hardware
OEM conversion harness 5′, 10′,15′, 25′ cable lengths available.
Zip ties
Installation instructions
3 year limited camera warranty
Camera Specifications:
Super CMOS chip – outstanding color, contrast, and clarity!
Removable parking guidelines
150 degree view
600 TV lines of resolution
.1 lux minimum illumination – Outstanding night vision!
Displays on factory radio display*
*Factory radio must be programmed for a back up camera from the factory or by a dealership.
**This is for a Work Truck only- Window sticker and/or VIN will show (WT).
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
FMVSS 111 compliant!
This is a plug and play camera kit that will allow you to replace your factory tailgate camera on a Sierra/Silverado 1500 Series Work Truck with this Mini Universal camera – Plug and Play! Your truck must be prewired and programmed for a camera or this kit will not work. Please see the Applications tab for more information!
**This is for a Work Truck only- Window sticker and/or VIN will show (WT).
Use this camera for salt spreaders, bed campers, 5th wheel applications, airstream tailgates, and any other application where you are required to remove your factory tailgate. This universal camera mounts flush with a flat surface. Drill a 22.5mm hole(hole saw included) and run the cable through to your factory backup camera connection. Choose the cable length from the drop down above.
*Factory radio must be programmed for a back up camera from the factory or by a dealership.
APPLICATIONS:
2020-2021 GMC® Sierra Work Truck
2020-2021 Chevrolet® Silverado 1500 Work Truck
“Work Truck” with factory installed backup camera wiring and “IOR” RPO code. Contact your GM® dealer with your VIN number to determine that your VIN has the “WT” specification and the “IOR” RPO code. NOTE: RPO code list can be retrieved by scanning the QR code on the VIN plate in the driver doorjamb.
Also confirm that you have the 30 pin connector for the camera wiring at the back of the truck.
**This is for a Work Truck only- Window sticker and/or VIN will indicate (WT).
NOTE: In order for this kit to operate correctly, your truck must be programmed for a backup camera.
To check if the radio is programmed for a camera, place the vehicle in reverse and insure the radio display switches to either NO DISPLAY (black screen with a warning) or a functioning backup camera. If your truck DOES NOT switch over to either a blank screen or an active rear camera, your vehicle must be programmed at your GM dealership to turn on the backup camera. Purchase of this kit does not include programming of the factory radio.
EVI Systems has certified this camera system to comply with FMVSS 111 regulations as set forth by the National Highway Traffic Safety Administration (NHTSA). Testing has been performed jointly in-house and by a certified laboratory to meet or exceed the minimum requirements set forth by TP-111-V-01.  FMVSS 111 field of view requirements and any other vehicle related certification is ultimately the responsibility of the vehicle up-fitter to ensure compliance. Â
| Video System | NTSC |
|---|---|
| Waterproof/Dustproof Level | IP 67 Camera |
| Night Vision | < .2 Lux |
| Power Supply | 12 Volts |
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Parking Guidelines | Selectable on/off |
| Camera Orientation | Rear Facing |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Sensor Type | Super CMOS |
| Viewing Angle | 150 Degrees |
| Warranty | 3 Year |
| Camera Type | Rear Camera, Utility Bed Camera Systems |
| Vehicle Category | Truck, Fleet Vehicle (i.e. cargo van) |
| Number of Cameras | 1 |
| Install Type | Relocating factory camera |
| Wiring Type | Factory Plug & Play |
| Camera Mount Location | Flush Mount |
| For a monitor it uses | Your factory display |
| Radio Screen Size | Factory LCD |
| Make | Chevrolet, GMC |
| Model | Silverado, Sierra |
| Year | 2020,2021 |
Camera is drill-in style for flat mounting. It will require a flat section approximately 1″ x 1″ for mounting.
Drill a small hole and connect the camera harness to the OEM conversion harness.
Run the cable to your factory backup camera 30 pin connection under the truck and plug it in.
PRODUCT WARRANTY: 3 YEARS
