NEW PRODUCT!

Brand:Linkswell

GEN 6 T-Style Radio for 2005-2015 Toyota Tacoma

TS-TYTC12-1RR-6H

$1,649.00

NEW: Quick boot for instant startup
NEW: Add HDMI input module
NEW: Android 11.0
NEW: Supports SIM Card (Verizon/T-Mobile compatible)
NEW: Wireless Car Play/Android Auto
12.1″ HD touch screen Android Tablet
4GB RAM
64GB Memory
AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
3 USB inputs (1 factory input, 2 auxiliary)
BT 5.0 w/APTX Loss Less Music Streaming
HDMI Out
HDMI In (Requires optional HDMI input module)
USB Music and Video player w/HD Video and Video in motion options
4X45 Watt built-in amplifier w/DSP & EQ
5 Volt RCA Preouts (Front, Rear, Sub)
On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
Retain vehicle factory reverse cameras
Retains Factory JBL System
Add aftermarket front, rear or right cameras
WIFI for web browser, app download and use.

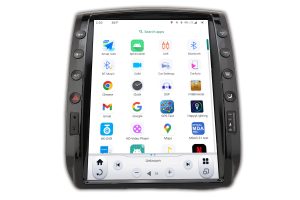

App List w/Google Play Store for personal app downloads
UNLIMITED INSTALLATION PHONE SUPPORT AND ACCESS TO OUR TECH DATABASE
PLEASE REVIEW APPLICATIONS & COMPATIBILITY BELOW PRIOR TO PURCHASE

NOTE: DUE TO PRICING DISPLAY RESTRICTIONS, ACCESSORIES DISPLAYED BELOW WILL HAVE AVAILABLE DISCOUNTS APPLIED IN THE CART – PLEASE ADD TO CART TO SEE FINAL PRICING

QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC

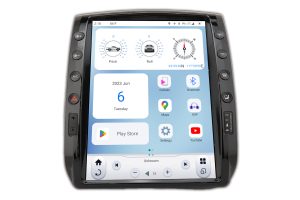

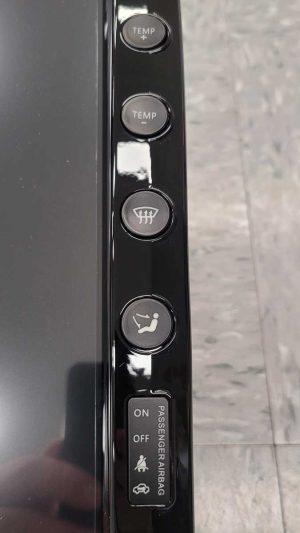

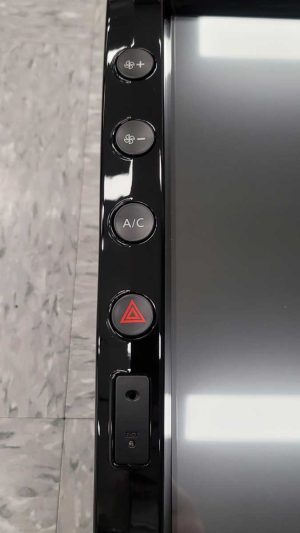

The Linkswell GEN6 T-Style multimedia center replaces the factory display screen and climate control center in Toyota Tacoma pickups, enhancing the dash with a 12.1-inch, multi-touch panel encased in a factory-match bezel. The climate controls are recreated on-screen, allowing the driver to access all related features.

The Android 11-powered multimedia center is optimized to display relevant information with minimal distraction. Google Maps is pre-installed, and your choice of Android navigation apps (such as Waze) can be installed to give you live updates while driving (internet connection required – via optional SIM card, dedicated or phone hotspot). In addition to using the T-Style’s built-in AM/FM tuner, drivers can utilize the factory USB port to connect smartphones, and an additional USB connector for flash media. Bluetooth® connectivity enables hands-free phone calls and wireless music streaming.

Adding a SIM card is now an option! The GEN6 allows you to insert a SIM card to provide the radio with its own data source so you can access the Internet through a browser that displays full web pages with multiple tabs and search capability. You can also use your subscription-based streaming services — Pandora® Internet Radio, Spotify® and more — by downloading the Android-compatible apps onto the unit’s 64GB of internal storage.

With the SPDIF (optical) output, the GEN6 can function as a state-of-the-art head unit, with the addition of aftermarket amplifiers that accept this ultra-clean signal.

The included WIRELESS Car Play (Apple) & Android Auto (Android) capability allows you to enjoy a seamless experience using the power of your smartphone for additional features of each system, while the optional DVR camera functions as a “dash cam” and enables recording and playback of all of your trips (SD card required for recording – not supplied)

For safety, the Linkswell GEN6 T-Style has three dedicated camera inputs for optional front, rear and passenger-side camera views. The reverse camera switches when the vehicle shifts into reverse gear, the right side camera when the right turn signal is applied, and the front camera is manually operated.

APPLICATIONS:

2005-2015 Toyota Tacoma w/Base or JBL amplified audio systems

Factory Features Retained: (if present)
USB ports
Steering Wheel Controls
Factory Rear Camera
HVAC Controls
JBL Audio System

Factory Features NOT Retained: (if present)
Satellite radio
HD radio
CD Player
Driver Information Center radio & navigation displays

NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.

To view this content, you need to have JavaScript enabled in your browser.
To do so, please follow these instructions.

Customize Wallpaper:

Add SIM Card:

Wireless Car Play on XL/GEN6:

Wireless Android Auto on XL/GEN6:

DSP Features on XL/GEN6:

Split Screen on XL/GEN6:

Wi-Fi on XL/GEN6:

Customize Home Page on XL/GEN6:

PRODUCT WARRANTY: 1 YEAR

NOTE: You must register the unit with Linkswell in order to fully comply with the terms of the One-Year limited warranty.

Read the terms and fill out the “Warranty Registration Form” on the Linkswell website to fully activate your warranty.

If you need service under warranty, you must fill out the “Return Request Form” on the Linkswell website.

Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.

Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.

Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!

Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
