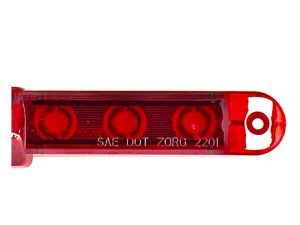

Universal 3rd Brake Light Camera w/150 Degree Camera for Service Bodies
2201$159.00
- Thin Line CHMSL W/150 Degree Viewing Angle HD Camera

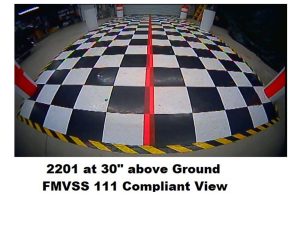

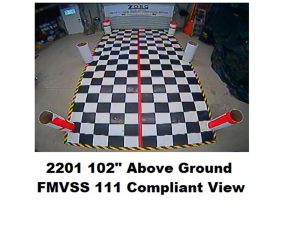

- Provides an FMVSS 111 Compliant View From 30 Inches to 102 Inches Above Ground
- HD 800TVL High Resolution, 150 Degree Viewing Angle
- SAE / DOT / FMVSS Certified
- Selectable Mirror Image; Mirror/Standard (Blue Loop)
- Selectable Park Lines; ON/OFF Default is OFF(Green Loop)
- High Strength PVC Housing w/ Anti-UV Coating
- 12″ Video Cable W/ 4 Pin Screw Lock Connector
- 40” Power Cable for CHMSL with plug, 3M Power Extension Wire
- Three Year Warranty
- Licensed Under US Patent 7,609,961
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
Adds another level of safety and security – perfect for service bodies or box trucks with flat surfaces!
Camera view is FMVSS compliant at any mounting height.
Universal fit for Service Bodies or other flat surface mounts
PRODUCT WARRANTY: 3 YEARS
- Imager: 1/3” Super CMOS 60Fps Color 972 x 504 Resolution
- Water Resistant: IP67
- PAL/NTSC Compatible
- Minimum Illumination: 0.02LUX
- Operating voltage 3BL LED: 9-28Vdc
- Operating Voltage Camera: 5.5-36Vdc
- Operating Current Draw: 0.4 amps @ 12.8vdc
- Operation Temp.: -35℃~+85℃
- Storage Temp: -20℃~+70℃
- Vibration Tested to 10G
- Weight: 5.4Oz (Camera)
- Package: 10.5Oz 11.75”x 3” x 3”
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
