Trailer Camera w/Auto Switcher for Ford F-150 w/o 360 Camera System
CS-FTR-AT$354.00
Kit includes the following:
- Heavy duty commercial camera with Sony CCD sensor, customized to work with your factory display radio for the clearest picture available
- Auto Trailer switcher box with OEM to commercial coax conversion harness-plug and play! (Pat. No: 9154746, 9882319)
- OEM conversion harness has factory ends for plug and play with your existing wiring.
- 32′ coaxial wire harness with weather tight connectors (unless other option selected)
Camera Specifications:
- Sony Ultra CCD for a super clear image
- Infra-red LED’s /Â 150 degree view /Â 700 TV lines of resolution
- 0 lux (no light required to operate)
- Locking weather tight connector
NOTE: Guidelines & Zoom features do not operate with auto-switcher installed
**Not compatible with trucks that have the 360 degree view system** NOTE: Ford trucks equipped with the ‘Pro Trailer Back-Up Assist’ system will not function with this kit installed.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
Finally – an easy way to add a reverse camera to any trailer and have it automatically displayed on your factory display screen when connected! Plug and play with your factory wiring! Automatically detects when the trailer camera is plugged in and switches from the tailgate camera view to the trailer camera view.
This simple switcher box is plug and play with your factory camera wiring at the back of the truck. Mount your camera and cabling on the trailer and plug into the T-harness on the switcher box and you’re all set. No complex installation behind the dash. Everything is easily accessible under the tailgate at the back of the truck. No cutting or splicing!
When you want to disconnect the trailer simply unplug the trailer camera and the camera view automatically switches back to the factory tailgate camera. Cover the disconnected cables with the included dust caps for protection.
APPLICATIONS:
F-150: 2008-2021 truck with a factory installed backup camera. This kit relies on the factory camera chassis harness to operate.
Currently not compatible with 2015+ manual lowering tailgate option.Â
**If your F150 has an automatic lowering tailgate that can be activated with your key fob, be sure to select the Automatic Lowering Tailgate option when ordering. The connector for the camera is different for trucks with this option.
Note:Â Guidelines and zoom features are eliminated when auto-switcher is included in system.
Note: The automatic lowering and power locking tailgate feature is disabled when using this kit. Â
Ford trucks equipped with the ‘Pro Trailer Back-Up Assist’ system will not function with this kit installed.
| Video System | NTSC |
|---|---|
| Waterproof/Dustproof Level | IP 68 Camera |
| Night Vision | 0 Lux |
| Power Supply | 12 Volts |
| System Manufacturer | EVI Systems |
| Camera Resolution | 700 TVL |
| Parking Guidelines | Not Available |
| Camera Orientation | Rear Facing |
| Fit Type | Universal fit |
| Connection | Factory Connector |
| Sensor Type | CCD |
| Sensor Brand | Sony |
| Viewing Angle | 150 Degrees |
| Warranty | 1 Year |
| Camera Type | Rear Camera, Trailer/Camper/5th Wheel camera |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Number of Cameras | 1 |
| Reason for Shopping | Adding the camera(s) |
| Wiring Type | Factory Plug&Play |
| Camera Mount Location | Camper/Utility Bed, Universal Mount |
| For a monitor it uses | Your factory display |
| Radio Screen Size | Factory LCD |
| Make | Ford |
| Model | F-150 |
| Year | 2008,2009,2010,2011,2012,2013,2014,2015,2016,2017,2018,2019,2020,2021 |

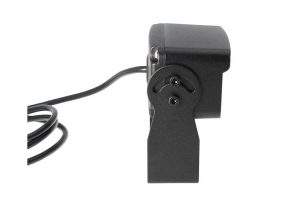

Mount the camera anywhere! Versatile mount allows for surface mount in virtually any location. Camera tilt is adjustable so the view can be adjusted to accommodate any view required!
Power is run to the camera through the coaxial cable so it is not necessary to locate power on the trailer or area where the camera is mounted.

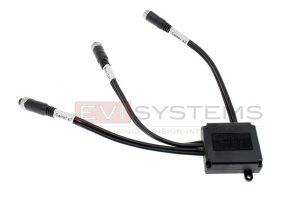

Auto switcher box plugs directly into the factory camera connection located under the truck, behind the rear bumper.
No complex installation behind the dash. Everything is easily accessible under the tailgate at the back of the truck. No cutting or splicing!
PRODUCT WARRANTY: 1 YEAR
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
