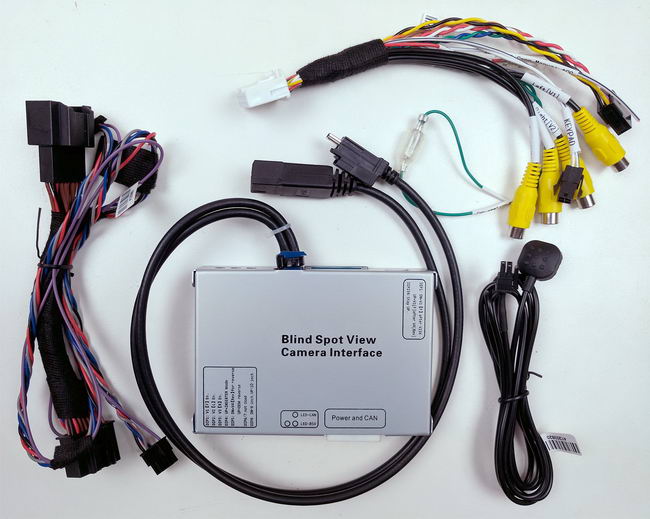

Multi-Camera Interface for GM Vehicles – 8″ MyLink
GMIO56FCAM1$349.00
Completely plug and play with the factory entertainment system. Allows connection of up to four cameras to the factory screen, or use as an A/V input for up to three outboard sources!
Right and Left Blind spot camera inputs are automatically triggered by the turn signals. Front camera (optional) can trigger after vehicle is taken out of reverse for five seconds, insuring the coast is clear. Additional rear camera can monitor 5th wheel, trailer, etc.
NOTE: Requires vehicle be equipped with 8″ display radio Radio / HMI module combination (RPO Code IO5 & IO6). 2017 vehicles with rear-seat entertainment system and/or one-piece radio systems (4.2″ or 7″) are not applicable.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
This video interface allows for the installation of multiple cameras around the vehicle providing unparalleled safety through added driver awareness, as well as a three input video switcher, allowing outboard video sources to be played on the factory screen. Covers a wide variety of the most popular GM trucks and cars with the 8″ MyLink system.
The system works in two configurations:
CAMERA MODE: Allows the installation of front, side and rear cameras (if no factory rear camera) or front & side cameras if factory camera is present.
VIDEO MODE: Allows 1 rear camera and 3 video inputs for phone mirroring, DVD, TV, etc. (Sound will play through AUX or factory Bluetooth)
In camera mode, front and side cameras can be added if the vehicle is already equipped with factory rear camera. Rear camera can be added if factory camera is not present. Front camera will trigger for 5 seconds when vehicle is taken out of reverse. Side cameras will trigger (by CAN data) when turn signals are activated. OE or aftermarket rear camera will trigger in reverse.
In video mode, the 3 video inputs can be toggled using the outboard switch provided. Rear camera (OE or aftermarket) will work only in reverse.
2014-2018 GM 1500-Series trucks w/8″ screen (RPO codes IO5, IO6)
2015-2019 GM 2500/3500-Series trucks w/8″ screen (RPO codes IO5, IO6)
PRODUCT WARRANTY: 1 YEAR
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
