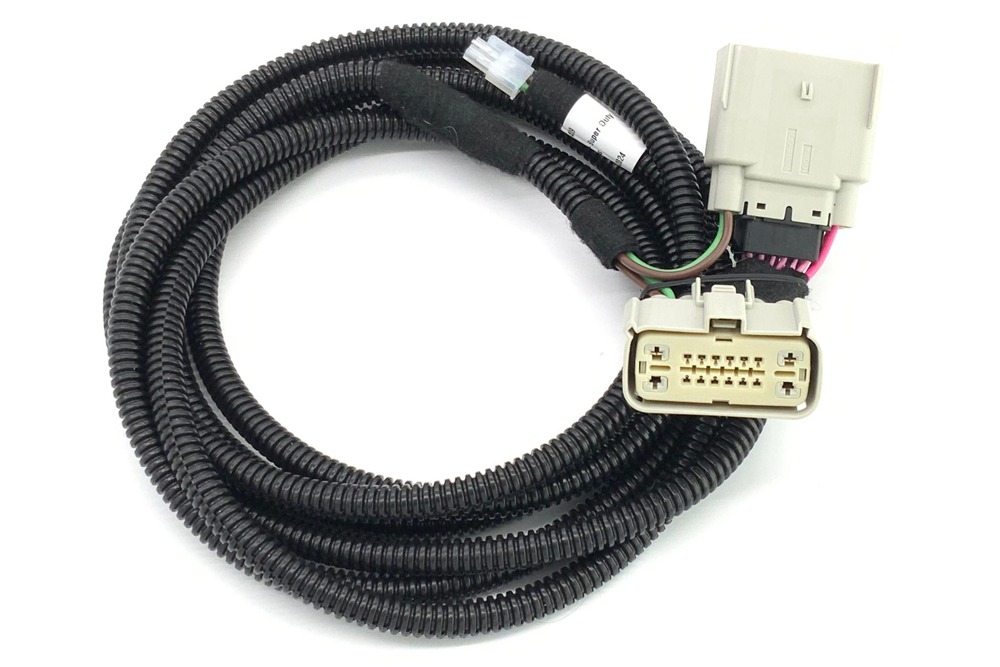

Ford Super Duty Power Lock Harness
002-409$84.00
Provides Lock and Unlock Trigger source for door locks (+12v)
Plug and Play installation require no wire splicing.
The harness uses OEM quality connectors and terminals for a water-tight connection.
The harness is covered with convoluted tubing for protection and easier installation.
Includes one packet of Dielectric grease to protect connections from water and corrosion.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
2023+ Ford Superduty E-Lock Harness is designed to provide door lock and unlock triggers for Toppers with power door locks.

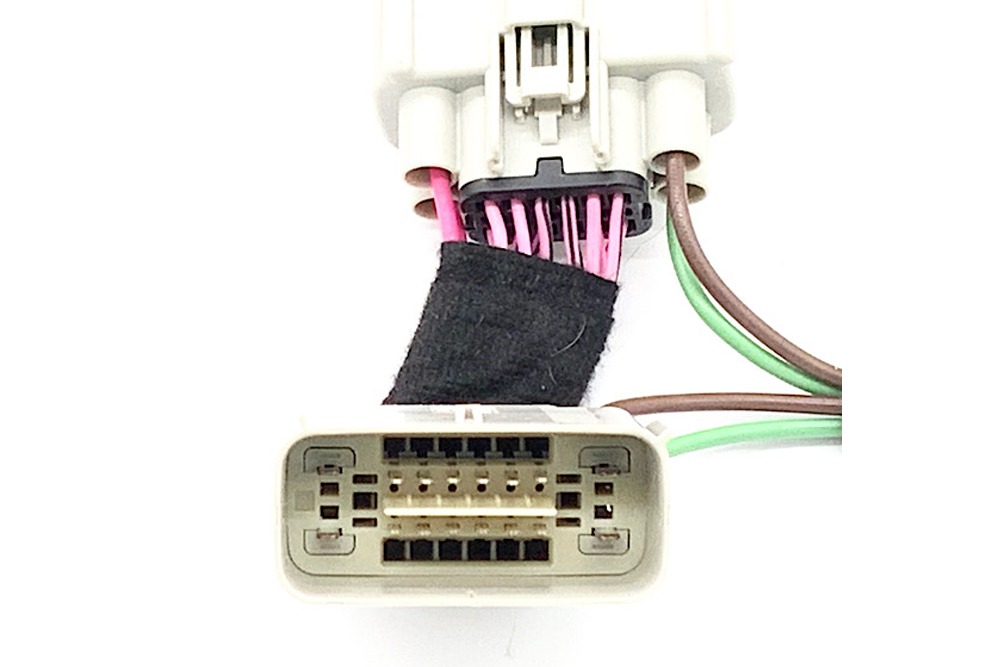

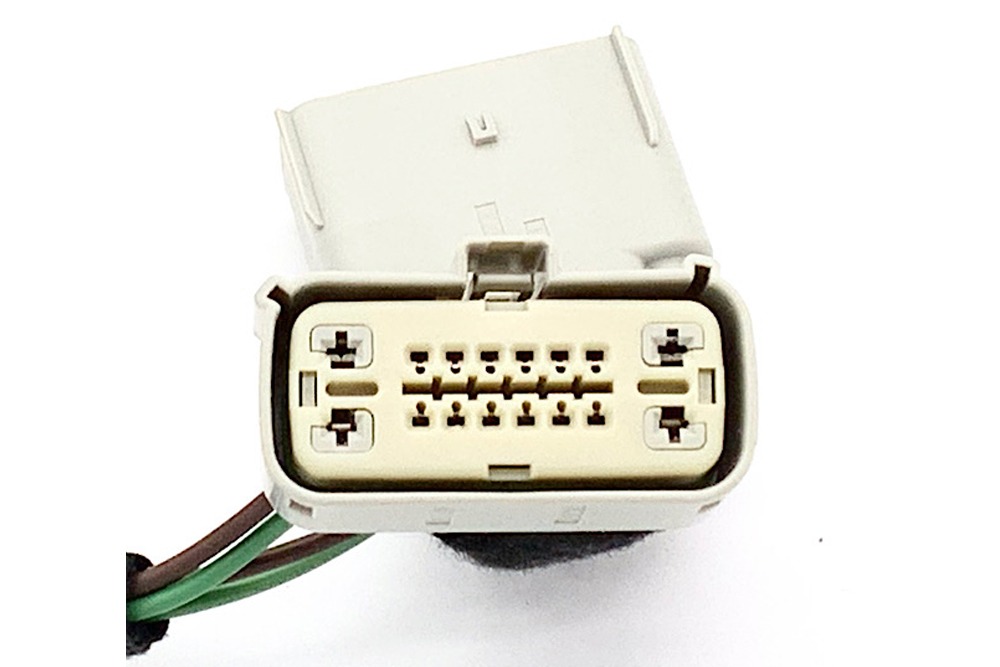

The harness provides a plug & play connection at the tailgate connector and a 10-foot-long extension to reach the relay box for the door locks.

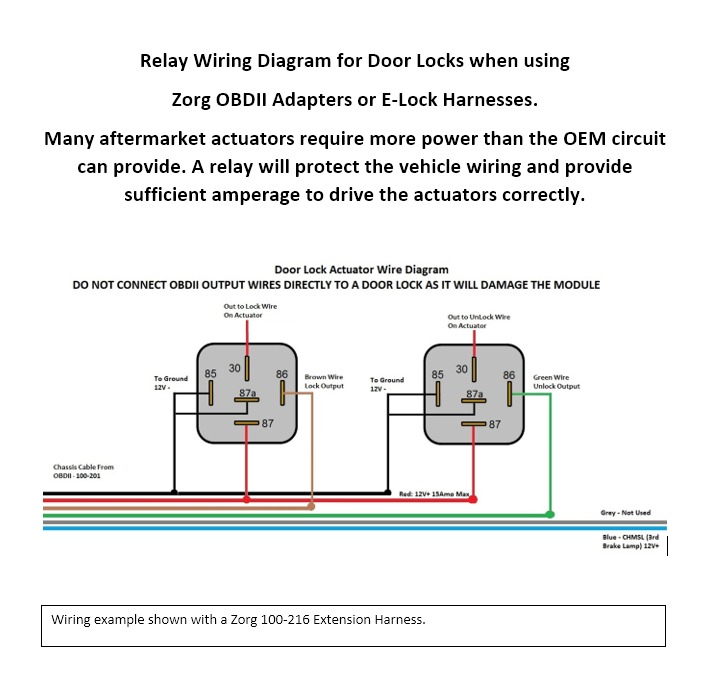

Use in conjunction with our Power Brake Ground harness to supply everything needed to locks and accessories in the truck cap, topper, or insert.
- Harness length 10 feet.
- The harness uses OEM quality components.
- The harness is covered with convoluted tubing.
- Weight 8.5 oz
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
