Commercial 2nd Camera for Ford w/4.2″ Display
EVI-UTC-SWF42$325.00 – $405.00

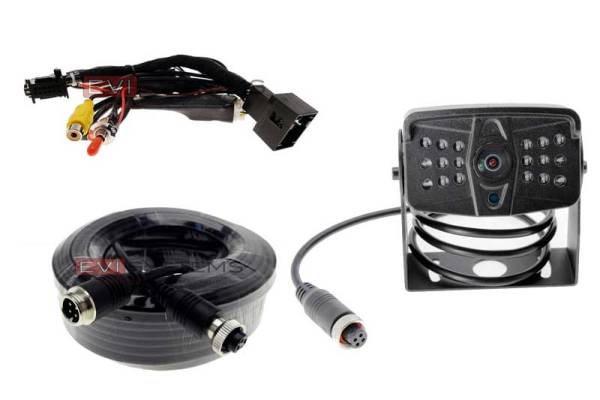

Kit includes:

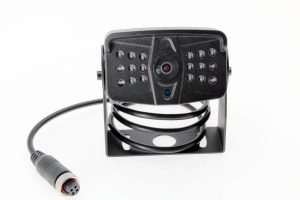

- Commercial grade night vision camera with 700 TV lines of resolution Sony CCD sensor (CS-UCCD-SONY)

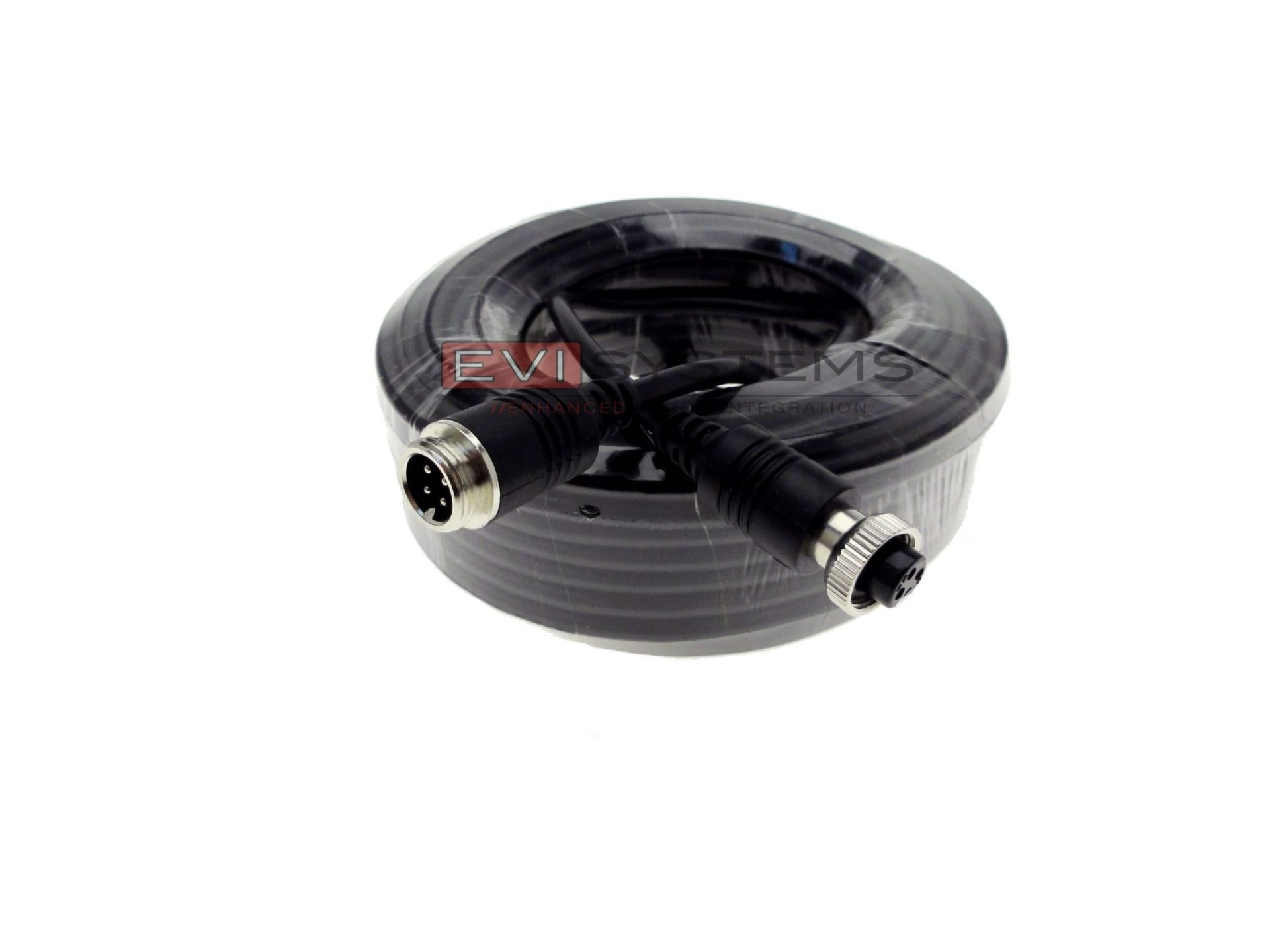

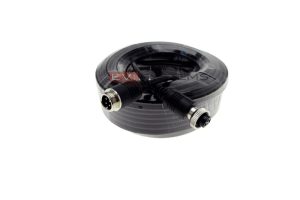

- 64′ length 4 pin coaxial weather proof cable (CS-UC20)
- 4 pin male to RCA conversion harness so that you can connect to the video switcher
- All connections are weather tight except those made inside the cab!

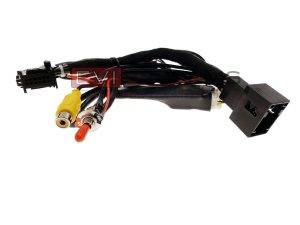

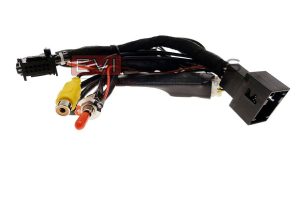

- Integration harness with toggle switch for Ford 4.2″ display
Camera Specifications:
- 1/3″ Sony CCD for the highest clarity available
- 700 TV lines of resolution / 150 degree field of view
- IR LED’s for clear night vision even in complete blackness
- Weather grommet for easy cable passage to the interior
- Aluminum alloy weather tight casing with IP68 water resistance
- Weather tight screw connectors for extremely secure and dry connections
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
This kit includes a harness that will allow you to use your 4.2″ factory radio display and toggle between your factory installed back up camera and this commercial camera when in reverse. The camera connects to a video switcher harness that connects to the same connector on the back of your factory 4.2″ display that your factory rear camera uses.
This kit comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding the second rear camera on the rear of the truck or trailer. This camera has built in LED’s for better night vision. Comes with everything you need to install the camera on the rear of the trailer and run a 4 pin coax to the cab to connect to the video switcher. Optional trailer quick disconnect system allows you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.
The included video switcher harness allows you to choose which camera you want to display when in reverse by flipping a switch.
Notes about the included integration cable:
- Truck must have a rear view camera that was installed at the factory and is displayed on your 4.2″ factory radio screen
- Kit includes a video switcher harness that allows you to connect both your factory tailgate camera and this commercial camera to your factory radio. The switch allows you to choose which one is displayed in reverse.
APPLICATIONS:
2013-2022 Ford® F150 trucks with a factory tailgate camera and 4.2″ factory display.
2013-2022 Ford® Super Duty trucks with a factory tailgate camera and 4.2″ factory display.
| Waterproof/Dustproof Level | IP68 |
|---|---|
| Night Vision | < .2 Lux |
| Power Supply | 12 Volts |
| System Manufacturer | EVI Systems |
| Camera Resolution | 700 TVL |
| Parking Guidelines | N/A |
| Camera Orientation | Rear Facing |
| Fit Type | Universal fit |
| Connection | RCA with opt. Factory Interface |
| Sensor Type | CCD |
| Sensor Brand | EVI Systems |
| Viewing Angle | 150 Degrees |
| Camera Input Ports | 1 |
| Warranty | 1 Year |
| Camera Type | Rear Camera |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Number of Cameras | 1 |
| Reason for Shopping | Adding the camera(s) |
| Wiring Type | Hard Wired |
| Camera Mount Location | Universal Mount |
| For a monitor it uses | Your factory display |
| Radio Screen Size | 4.2” Ford |
| Make | Ford |
| Model | F-150,Super Duty |
| Year | 2013,2014,2015,2016,2017,2018,2019,2020,2021,2022 |
Remove the radio to gain access to the camera connector, install new plug and play harness.
PRODUCT WARRANTY: 1 YEAR
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
