Brand:Heise LED

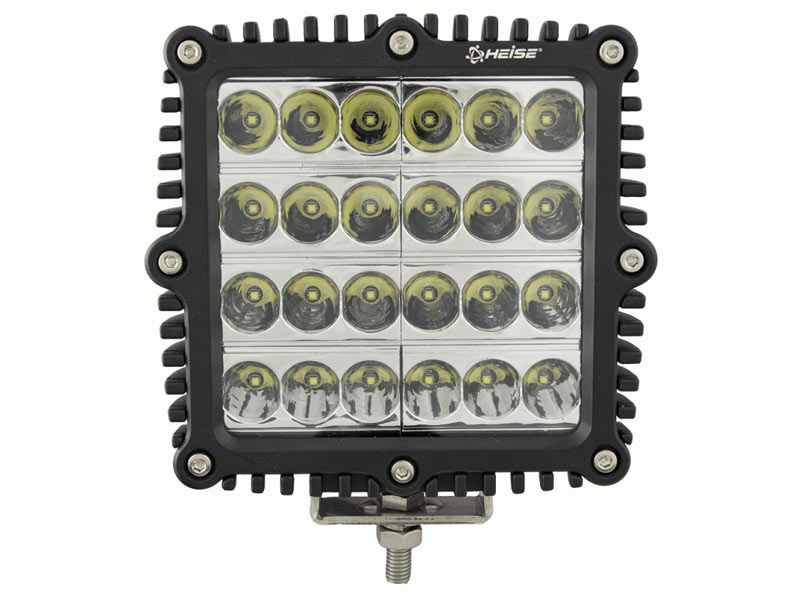

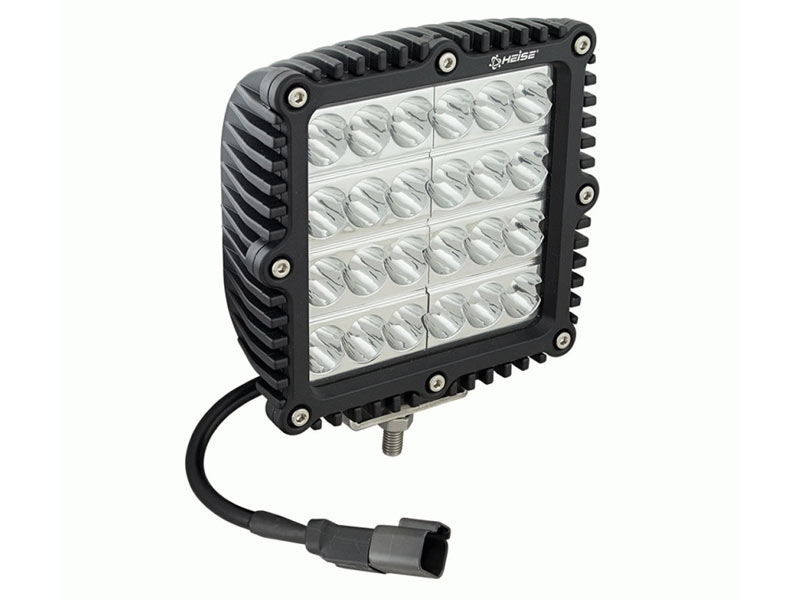

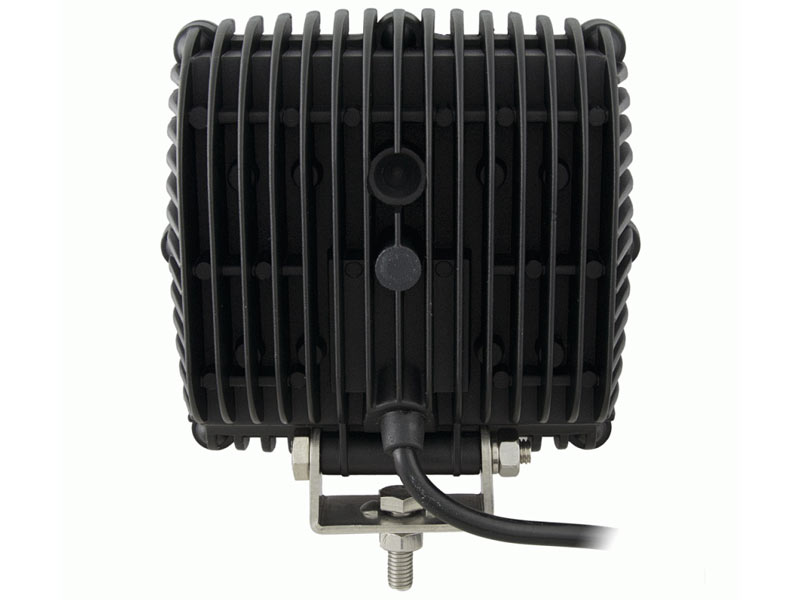

5″ Square 24 LED Driving Light-5760 Lumens




The 5.5 Inch Square Driving Light by Heise features 24 CREE LEDs for a total of 72 watts with 5760 raw lumens. This bright light has a 20 degree spot beam and a polycarbonate lens with black die-cast aluminum housing. Rugged – tough and rated IP67 to withstand the elements.

Input Voltage: 10-30V DC
Wattage: 72W
(24-3W CREE LEDs)
Raw Lumens: 5760
LUX at 10M: 500
Color Temperature: 6500K
Beam Pattern: 20 Degree Spot
Size: 5.5 inch W x 5.75 inch H x 2 inch D

Housing Material: Black Die-Cast Aluminum Housing
Housing Color: Black
Lens Material: PC
Mounting Bracket: 304L with Stainless Steel Hardware

Operating Temperature: -49 degrees F to 185 degrees F
Current Consumption: 3.2 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
