Brand:Heise LED

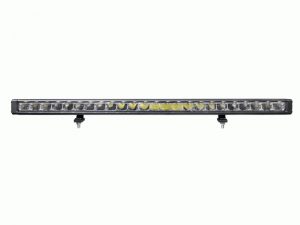

32 Inch Slimline LED Light Bar – 6480 Lumens



Input Voltage: 10-30V DC
Wattage: 45W (15-3W OSRAM LEDs)
Raw Lumens: 4050
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

Housing Material: Powder Coated Aluminum
Housing Color: Black
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Mounting: Side and Bottom
Hole Dimensions: Brackets turned outward – 22.25in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316

Operating Temperature: -40degC to +60degC
Current Consumption: 2.4 amps at 13.8 volts
IP Rating: IP67
Protections: Reverse Polarity

NOTE: This is a special-order part. Please review our policies regarding special orders.

QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
