Universal 2nd Camera for Ford w/4.2″ Display
EVI-ULPM-SWF42$219.00

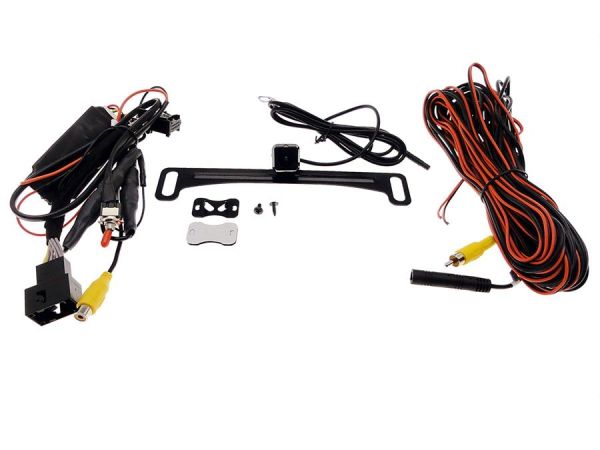

Kit includes:
- Dual mount camera system with high grade Super CMOS sensor for an ultra clear view, mount on license plate or universal bracket to be mounted anywhere
- 25 foot harness
- Wire connectors
- Zip ties
- Integration harness with toggle switch for Ford® 4.2″ display
- Install instructions
Camera Specifications:
- Camera Source exclusive Super CMOS high grade sensor with night vision
- Selectable parking guidelines (can be turned off if desired) When using parking lines, it is recommended to mount the camera on the centerline of the vehicle. NOTE: Black center line is not present on actual display.
- 600 TV lines of resolution
- <.2 lux minimum illumination – Outstanding night vision!
- 170 degree viewing angle
- 3 Year warranty
**Not compatible with trucks that have the 360 surround view system.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
This kit includes a plug and play harness that will allow you to use your 4.2″ factory radio display and toggle between your factory installed back up camera and this universal camera when in reverse. This is a universal camera that features two mounting options; it can be installed behind the license plate or on a flat vehicle surface with minimal surface area requirements The camera connects to the same connector on the back of your factory 4.2″ display that your factory rear camera uses.
Make installation even easier with an add on 12 Volt power source to eliminate the need to locate a power source on the vehicle and avoid cutting or splicing into factory wiring! See related item SKU: CS-RPW-P
Adds the convenience of a 2nd rear camera to a tool box, headache rack, cab and chassis, or other specialty bed. With this added camera you can see your fifth wheel hitch or anything else that is inside your bed without having to have a spotter guiding you for trailer connections etc.
The included harness allows you to choose which camera you want to display when in reverse by flipping a switch.
Notes about the included integration cable:
- Truck must have a rear view camera that was installed at the factory and is displayed on your 4.2″ factory radio screen
- Kit includes a plug and play harness that allows you to connect both your factory tailgate camera and this universal camera to your factory radio. The switch allows you to choose which one is displayed in reverse.
APPLICATIONS:
2013-2022 Ford® F150 trucks with a factory tailgate camera and 4.2″ factory display.
2013-2022 Ford® Super Duty trucks with a factory tailgate camera and 4.2″ factory display.
Remove the radio to gain access to the camera connector, install new plug and play harness.
PRODUCT WARRANTY: 3 YEARS
| Waterproof/Dustproof Level | IP68 |
|---|---|
| Night Vision | < .2 Lux |
| Power Supply | 12 Volts |
| System Manufacturer | EVI Systems |
| Camera Resolution | 600 TVL |
| Parking Guidelines | Selectable on/off |
| Camera Orientation | Rear Facing |
| Fit Type | Universal fit |
| Connection | RCA with opt. Factory Interface |
| Sensor Type | CMOS |
| Sensor Brand | EVI Systems |
| Viewing Angle | 170 Degrees |
| Camera Input Ports | 1 |
| Warranty | 3 Year |
| Camera Type | Rear Camera |
| Vehicle Category | Truck, Camper/Trailer (if connecting to vehicle wiring) |
| Number of Cameras | 1 |
| Reason for Shopping | Adding the camera(s) |
| Wiring Type | Hard Wired |
| Camera Mount Location | Universal Mount |
| For a monitor it uses | Your factory display |
| Radio Screen Size | 4.2” Ford |
| Make | Ford |
| Model | F-150,Super Duty |
| Year | 2013,2014,2015,2016,2017,2018,2019,2020,2021,2022 |
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
