2010-15 Camaro Replacement Radio Kit
KIT-CAM1$229.00

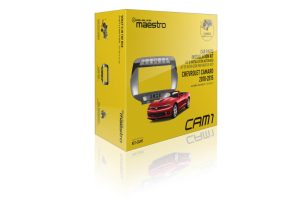

iDatalink’s KIT-CAM1 package includes a dash console that matches the fit and finish of your Camaro’s dash. You can operate your climate controls from your receiver’s touchscreen and the customizable buttons built into the iDatalink dash console. The kit also includes a panel with 2 USB ports, an HDMI port, and a 3.5mm A/V input. The Maestro RR is required and sold separately.
This kit accommodates all radios that are compatible with the “Maestro RR” data module, allowing much more integration with factory controls and data.
To see which radios are compatible with this kit and add the additional functionality of Maestro RR module, click here.
To see the list of compatible vehicles, click here.
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC

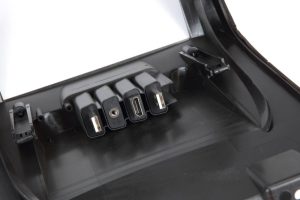

Factory Style Dash Kit: The KIT-CAM1’s dash kit features a factory grade fit & finish to match the contour and color of your Camaro’s dash. The dash kit will fit select Double-DIN Alpine, JVC, Kenwood, Sony, & Pioneer aftermarket radios with an iDatalink Serial Port. The kit features integrated climate control & hazard buttons. In addition, the dash kit provides flush-mounted dual USB ports, one HDMI input, and one AUX 3.5mm input for your head unit (if applicable).
Retained Features: The following factory features (if applicable) are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Alpine, JVC, Kenwood, Sony, or Pioneer using the Maestro RR or RR2 car radio replacement interface module and KIT-CAM1 installation package:
- Factory amplifier & subwoofer with turn-on, fader, DSP, and gain
- Climate control is offered on the aftermarket radio’s touchscreen and dash kit
- OnStar service & secondary vehicle display (if equipped)
- Factory Bluetooth, USB, and Aux
- Factory installed backup camera w/ park assist
- Steering wheel controls with two functions on each button for standard and expanded radio functions
- RAP & warning chimes (external chime module included)
Extra Features: The following extra features are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Alpine, JVC, Kenwood, Sony, or Pioneer using the Maestro RR or RR2 radio replacement interface module and KIT-CAM1 installation package:
- Selectable Performance Gauges
- Tire Pressure & Battery Voltage Display
- Read/Reset Check Engine Codes
- Door Open Status &Warning
Navigation Outputs:Â To make installing an aftermarket navigation receiver easier, the KIT-CAM1 provides Parking Brake, Reverse Gear, & VSS (Vehicle Speed Sense) output wires.
- Dash kit
- External chime module
- Wiring harness
- Front speaker harness
- Rear speaker harness
- Backup camera harness
- OBDII harness
- Antenna adapter
- 2 Brackets
- 2 Self-tapping screws
- 2 Machine screws
- Quick Start Guide
PRODUCT WARRANTY: 1 YEAR
Our goal is to answer all of your questions in advance so your purchase and installation goes as smooth as possible. We want to help you choose the right product for your vehicle and your priorities.
Since most electronic products are not eligible for return and refund once installed, and those that are will incur a restocking fee, it is critical that you understand the features and limitations of the products you are considering.
Please call 253-297-4570 if you have any questions about the products you are considering before your purchase or for support after your purchase, and we will be happy to help!
Please also take time to visit our POLICIES PAGE for more information and to review our policies regarding your purchase.
