Brand:Echomaster
2013-16 RAM Tailgate/Blindspot Cameras For Factory 5″ & 8.4″
FC-DRAMPRO-RSC$549.00
-
For select Select 2013-2016 RAMs with 5” or 8.4” Screens. Tailgate handle reverse camera and side blind spot cameras (PCAM-BS1), integration harness and PAC interface module included.
NOTE: NO DEALER PROGRAMMING REQUIRED

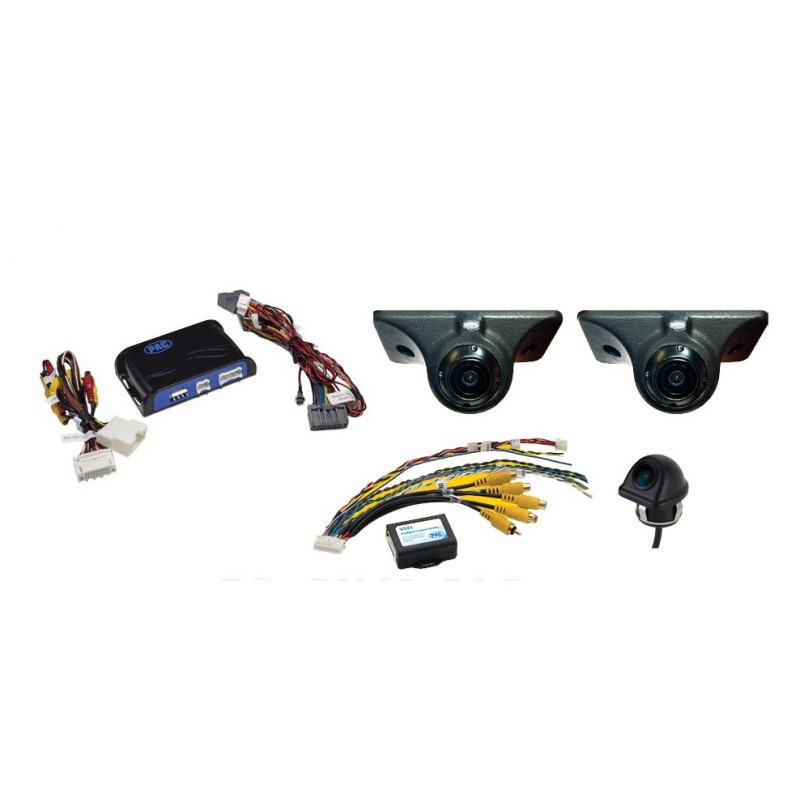

Kit Includes:
- PAC BCI-CH41v2 Interface Module
- Video Switcher Module (VS-41)
- Two PCAM-BS1 Blind spot cameras
- Tailgate handle camera
- Harnesses
- Install Guide
QUESTIONS? Call 253-297-4570 8:00AM - 6:00 PM PACIFIC
Sophisticated driver assistance for RAM provides extra visibility in places your mirrors can’t reach. This complete blind spot system includes side blind spot cameras that can be mounted under side mirrors and a tailgate handle reverse camera. The included integration module activates the individual cameras according to the driver’s behavior on the vehicle’s radio screen.
The seamless integration provided by the Chrysler PAC module delivers a simple, safe driving experience, eliminating common blind spots that surround the vehicle. Turn signals trigger the side lane change assistance cameras. So vehicles that may be lurking in the side blind spots are shown to the driver, prior to changing lanes, reducing the risk of side crashes. Placing the truck in reverse or drive triggers the tailgate handle camera to turn on, displaying the view behind the truck. The camera views are shown on the vehicle’s radio screen.

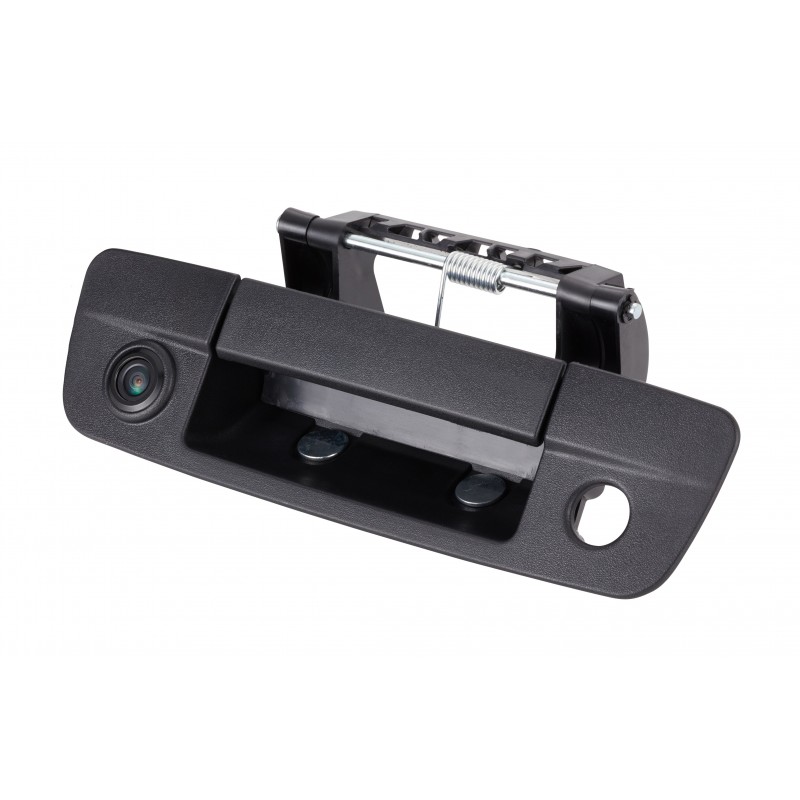

Tailgate Handle Backup Camera Features:
- Sensor Type: 1/4″ CMOS
- Min. Illumination (LUX): 0.5
- Viewing Angle: 170°
- Water/debris-proof Rating: IP67
- Parking Lines: Selectable
- Image (Mirrored / Non-mirrored): Mirrored

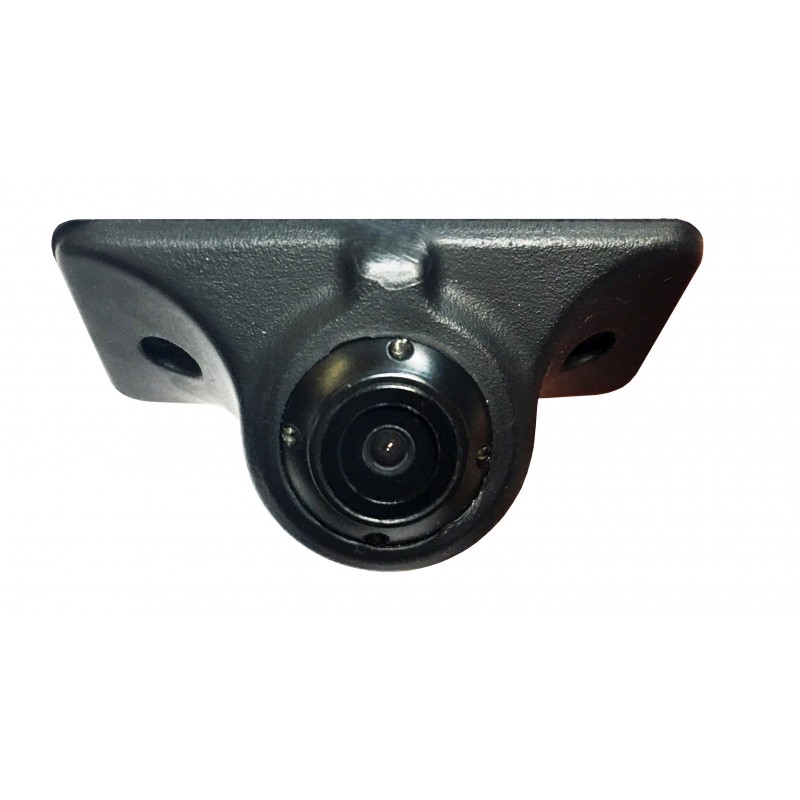

Side Blind Spot Camera Features:
- Sensor Type: 1/4″ CMOS
- Min. illumination (LUX): 0.1
- Viewing Angle: 80°
- Water/debris-proof Rating: IP67
- Parking Lines: Selectable
- Image (Mirrored/Non-mirrored): Selectable
PAC BCI-CH41v2 (MODULE) Features:
- Multiple camera inputs: Reverse (force reverse camera on anytime)
- Additional camera support with added VS41 video switcher
- Dual blind spots (configurable control options) Front (configurable control options)
- Independent full A/V input (to OE radio option)
- Retains last user settings for systems such as: Start-Stop Sport-mode Eco -mode
- Remote Start Climate Control Navigation & Radio Feature Unlock ie, APPs & BT functions
- 3 Programmable 12 Volt Outputs Output 1 – provides up to 10 amps
- Stores User Options (even with loss of power)
- Text driven menu seen on instrument cluster (using OE vehicle buttons)
- OE steering wheel control functions customizable
- Digital audio EQ presets X3 – (vehicles with digital amp only)
- LED and dip switches for ease of installation
- VS41 4-input Video Switcher support (plug-and-play)
- Direct USB Updateable
