Rosen/Car Show Splash Screens: Major League Baseball

GM1210

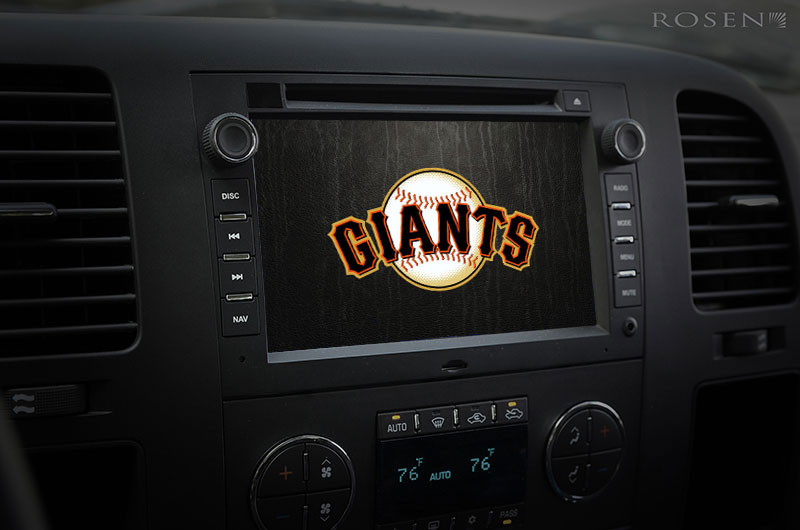

Rosen & Car Show OE Navigation units have the ability to have the “splash screen” (the first screen seen during the bootup process) customized to your individual taste and is a great way to personalize the unit.

The splash screen can be changed as many times as you like, as long as the following installation process is followed every time.

Installing the Splash Screen:

The splash screen update process requires a BLANK Micro SD card, a Micro SD card reader to allow you to copy files from the computer to the card, and a basic knowledge of file operations. If you don’t possess the proper adaptors or skills required, please do not attempt the update – although no permanent damage will be done to the unit if the update is done improperly, we provide only limited technical support for splash screen updates, and cannot spend unlimited time troubleshooting any issues that may arise due to improper installation.To update the splash screen, you must use a BLANK Micro SD card (16gb max), which will be inserted in the slot below the touchscreen. Two files will be copied to it: sysupdat.ini and Logoup.bmp. IMPORTANT: There cannot be any other files or folders on this card besides the two update files.

Step 1: Insert your Micro SD card into a reader on your computer, then download the installation files and extract the two files inside (sysupdat.ini and Logoup.bmp) to your Micro SD card.

Step 2:The images below are linked to an individual .zip file containg the .bmp image file you will need to install the splash screen. Click on the picture and your browser will ask you to open the .zip file or save it, or you can right click on the image and “Save link as” to save the .zip file to your hard drive. Open the .zip file and copy the file inside to your micro SD card, then rename this file “Logoup.bmp”, overwriting the existing “Logoup.bmp” file. For example: if you downloaded buick_burl_brushed_map.zip, the file inside must be renamed from buick_burl_brushed_map.bmp to Logoup.bmp and placed on the micro SD card.

Step 3: Once your splash screen file is downloaded, renamed and copied to the Micro SD card, verify that you have only the two update files (Logoup.bmp and sysupdat.ini) on the card, then remove the Micro SD card from the computer and insert it into the Rosen/Car Show navi SD card slot (IMPORTANT: insert into the navi system with the terminals facing UP).

Step 4: Turn the key on, and as the radio boots up, the new splash screen should automatically load and display on the screen. Let the radio boot up completely, then shut off the key and remove the SD card. Turn the key back on to verify the splash screen loaded correctly. You are done!

Troubleshooting:

If no splash screen loads, check to verify you have only two files on the Micro SD card: “Logoup.bmp and “sysupdate.ini” NOTE: SPELLING AND CASE IS IMPORTANT – THE FILES MUST BE NAMED EXACTLY AS YOU SEE HERE. Remember – there cannot be any other files or folders on the Micro SD card besides the two update files!

If you get a white “garbled” splash screen instead of the image you downloaded, the .zip file that was downloaded is most likely corrupted – try the download again or try another file. If you download any files that are corrupted, please notify us and we’ll fix it ASAP.

Downloadable files:


angels_grass

angels_red

angels1_ball

angels2_ball

angels3_ball

a’s1_ball

a’s1_green

a’s2_ball

a’s4

astros

astros1_ball

astros2_ball

astros2_orange

astros3_ball

balt1_ball

balt2_ball

balt3_orange

bluejays1_ball

bluejays2_ball

bluejays2_black

braves1_ball

braves2_ball

braves2_blue

braves3_ball

brewers

brewers1_ball

brewers2_blue

cards_grad_grass

cards1_ball

cards2_ball

cards3_ball

cards4_ball

chisox1_ball

chisox1_black

chisox1_black_leather

chisox1_gray

chisox3_ball

chisox3_black

cinn1_ball

cinn2_ball

cinn2_red

cleveland1_ball

cleveland1_blue

cleveland2_ball

cubs1_ball

cubs2_ball

cubs2_blue

dbacks1_ball

dbacks1_purple

dbacks2_ball

dbacks3_ball

dbacks3_red

detroit_tigers

detroit1_ball

detroit2_ball

detroit3_ball

detroit4

dodgers1_ball

dodgers2_ball

dodgers2_blue

dodgers3_ball

dodgers3_blue

expos1_ball

expos2_ball

giants1_ball

giants2_ball

giants3_ball

mariners1

mariners1_ball

mariners2

mariners2_ball

mariners3

mariners3_ball

marlins1_ball

mets_black

mets_black_tile

mets_blue

mets_blue_Aero

mets_blue2

mets_grass

mets_grunge

mets_leather

mets_pinstripes

mets_repeat

mets1_ball

mets2_ball

mets3_ball

mets4

mets5

mets6

mlb_logo_ball

nats1_ball

nats2_ball

nats3_ball

nats4_ball
astros
detroit_tigers

padres1_ball

padres2

padres3_ball

padres4_ball

padres5_ball

phillies1_ball

phillies2_ball

phillies2_red

pirates

pirates1_ball

pirates1_black

pirates2_ball

pirates2_black

pirates3_ball

pirates3_yellow

rangers1_ball

rangers2_ball

rangers3_ball

rays1_ball

rays2_ball

rays3_ball

redsox_black

redsox_blue

redsox_fenway1

redsox_grad_grass

redsox1_ball

redsox2_ball

redsox3_ball

redsox3_blue

redsox3_grass

rockies1_ball

rockies2_ball

rockies2_purple

royals1_ball

royals2_ball
rangers_flag
sf_giants
sf_giants2

st_louis_cards

twins1_ball

yankees1_ball

yankees2_ball

yankees2_blue
ny_repeat
