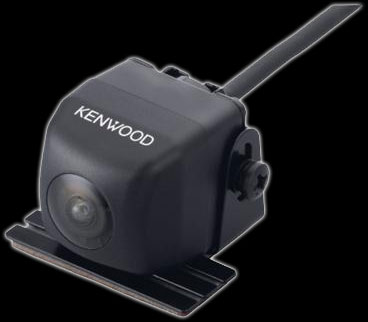

Kenwood “Sugar Cube” Style Rear CameraKenwood’s CMOS-210 rear-view camera is an excellent safety accessory to add to your Kenwood or Kenwood Excelon video receiver. This camera gives you a bright, wide 130-degree horizontal by 101-degree vertical view of what’s behind your vehicle when you’re backing up.
The camera renders a detailed 310,000 pixel resolution color image, and its highly sensitive CMOS sensor helps to eliminate distortion caused by nearby light sources like headlights. Mount the camera on your vehicle’s rear bumper or license plate, route the wire through your car to your video receiver, and you’ll never back over a garbage can again. The 29-foot long cable and harness assembly fits in most vehicles and includes a composite video connector, so it’ll work with almost any video receiver.
| General Features | |
| Camera Unit | |
| - Output Video | Wide-Angle Mirror Image (Rearview) |
| - Sensor | 1/4 inch color CMOS sensor |
| - Angle of View – Horizontal | Approx. 130°C |
| - Angle of View – Vertical | Approx. 101°C |
| - Color Signal System | NTSC |
| - Illumination Range | |
| Specifications | |
| Power | |
| - Operating Voltage | 14.4V (9.0 – 16 V allowable) |
| - Current Consumption | Approx. 60mA |
| - Grounding System | Negative Ground Type |
| General | |
| - Operational Temp Range | -30°C – +70°C |
| - Dimensions – Camera Unit | 24mm (W) x 24mm (H) x 24.9mm (D) |
| - Dimensions – Power Cord | 7.5M (24.6ft) |
Display Technology: The 3.3″ edge-lit 16:9 LCD provides a high-definition display of the rear of the vehicle through the mirror’s reflective surface via Gentex’s proprietary “transflective” coatings. The display is driven by a camera located at the rear of the vehicle, and is displayed on the left side of the mirror. The compass displays at all times in a very sharp, very clean green font in the upper left corner of the display:
Safety and Convenience: From a safety perspective, the Rear Camera Display Mirror should help reduce the risk of backup accidents, especially for vehicles with limited rear vision. Another benefit is the convenience associated with hooking up to boats, RVs and utility trailers.
*Please note that the video display mirror is intended to be used as a supplemental device for drivers and does not eliminate the need to check rearview mirrors or walk around the vehicle, should conditions warrant. When it comes to backing up safely, nothing beats walking around the vehicle prior to moving it.
Included:
NOT Included:
Vehicle-specific Notes:The GM-1 tailgate camera is a cost-effective entry-level camera system that includes guide lines in the rear view, allowing easy approximation of distance to obstacles or when backing up to a trailer.
The system comes with the FACTORY GM bezel that includes accommodation for factory key lock (if present) and harnesses that terminate in a male RCA for universal application. Additional adaptors will be needed to incorporate into a factory navigation head unit.

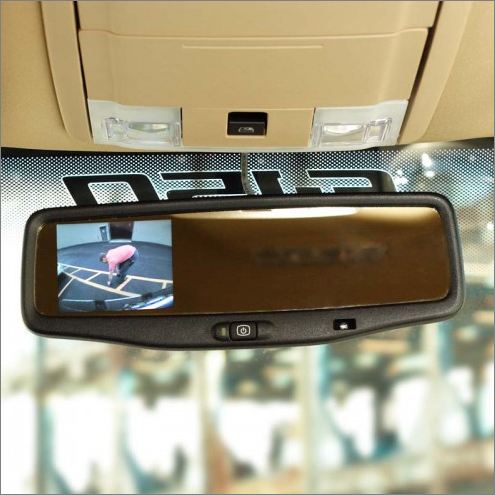

Included:See what you’ve been missing (or hitting) with this complete integrated backup camera and 3.5″ LCD display rearview mirror for your 2004-2011 F-series vehicle. Includes identical replacement rear-view mirror for your Ford vehicle (with no loss of vehicle features) and factory replacement tailgate bezel with integrated Panasonic OEM-grade color camera.
Protect your loved ones and your vehicle from back up accidents
You value your F-series Truck, and your family and loved ones more. A quality rear vision system will protect both. This is a factory-original Ford Rear Vision System for your 2004-2011 and it’s available only from your dealer or through Brandmotion. When you put your vehicle in reverse, the replacement rearview mirror displays a bright 3.5″ LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera.

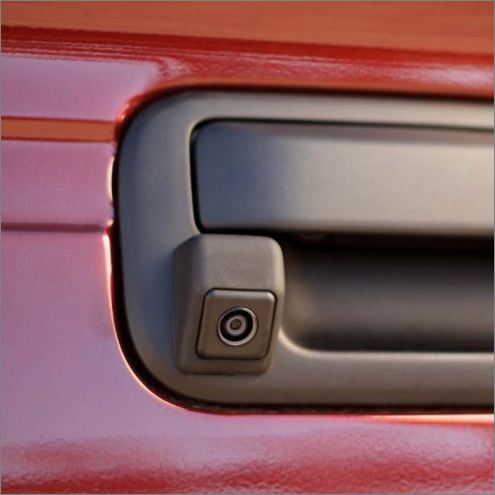

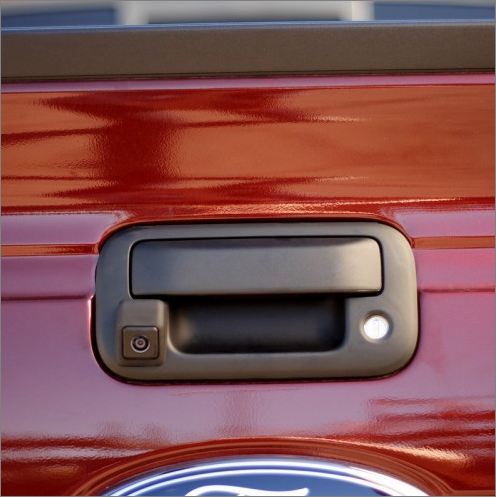

Compatible with all 2004-2011 Ford F-150, F-250, F-350 and Super Duty models. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and shielded harnesses.
This product is compatible with all 2009-2011 Ford PU models. However, if your vehicle has the factory Sync hands free phone system, you will need to also purchase the factory replacement microphone (shown below – PLEASE ADD $65) to replace the microphone that is built into your factory mirror (good news: in our tests this microphone actually performs better than the factory microphone).
![]() |
![]() |
![]() |
Included:See what you’ve been missing (or hitting) with this complete integrated backup camera and 3.5″ LCD display rearview mirror for your 2004-2011 F-series vehicle. Includes identical replacement rear-view mirror for your Ford vehicle (with no loss of vehicle features) and factory replacement tailgate bezel with integrated Panasonic OEM-grade color camera.
Protect your loved ones and your vehicle from back up accidents
You value your F-series Truck, and your family and loved ones more. A quality rear vision system will protect both. This is a factory-original Ford Rear Vision System for your 2004-2011 and it’s available only from your dealer or through Brandmotion. When you put your vehicle in reverse, the replacement rearview mirror displays a bright 3.5″ LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera.
Compatible with all 2004-2011 Ford F-150, F-250, F-350 and Super Duty models. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and shielded harnesses.
This product is compatible with all 2009-2011 Ford PU models. However, if your vehicle has the factory Sync hands free phone system, you will need to also purchase the factory replacement microphone (shown below – PLEASE ADD $65) to replace the microphone that is built into your factory mirror (good news: in our tests this microphone actually performs better than the factory microphone).
![]() |
![]() |
![]() |
Included:See what you’ve been missing with this complete integrated backup camera and 3.5” LCD display rearview mirror for your 2007-2008 GM Silverado or GMC Sierra. Includes identical replacement rear-view mirror for your GM pickup with no loss of vehicle features, replacement tailgate handle bezel with integrated Panasonic OEM-grade color camera, and all vehicle harnessing.
Identical to Factory Equipment
This is the factory-original GM Rear Vision System for your 2009-2011 GM pickup and it’s available only from your GM dealer or through ADC Mobile. When you put your truck in reverse, the replacement Rearview Mirror displays a bright 3.5″ LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera. Compatible with all 2009-2011 Chevy Silverado and GMC Sierra models. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and tailgate lock option and shielded harnesses.
See what you’ve been missing with this complete integrated backup camera and 3.5” LCD display rearview mirror for your 2007-2008 GM Silverado or GMC Sierra. Includes identical replacement rear-view mirror for your GM pickup with no loss of vehicle features, replacement tailgate handle bezel with integrated Panasonic OEM-grade color camera, and all vehicle harnessing.
Identical to Factory Equipment
This is the factory-original GM Rear Vision System for your 2007-2008 GM pickup and it’s available only from your GM dealer or through ADC Mobile. When you put your truck in reverse, the replacement Rearview Mirror displays a bright 3.5″ LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera. Compatible with all 2007-2008 Chevy Silverado and GMC Sierra models. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and tailgate lock option and shielded harnesses.
Included:This product is compatible with all 2009-2011 Dodge RAM vehicles. If your vehicle has the factory UConnectTM hands free phone system, you will need to also purchase the factory replacement microphone (shown below – PLEASE ADD $65) to replace the microphone that is built into your factory mirror (good news: in our tests this microphone actually performs better than the factory microphone).
![]() |
![]() |
![]() |
Included:See what you’ve been missing with this complete integrated backup camera for your 2007-2012 GM Silverado or GMC Sierra with factory or aftermarket in-dash navigation system*. Includes identical replacement tailgate bezel with integrated OEM-grade Panasonic camera for your GM pickup with no loss of vehicle features, and all vehicle harnessing from the camera to the back of your navigation radio.
*Factory navigation radio requires radio reflashing at a GM dealer with a Tech 2 system. Ask your GM dealer for operation part number #2583-6479 ( this typically costs $75 on average).
Seamless Rear Vision Integration to Your Factory/Aftermarket Navigation System
This is the factory-original GM Rear Vision System for your 2007-2012 GM pickup with Navigation, and it’s available only from your GM dealer or through ADC Mobile. When you put your truck in reverse, the Navigation Radio display provides a complete view of everything behind your vehicle, through the included high-resolution Panasonic wide-angle camera. Compatible with all 2007-2012 Chevy Silverado and GMC Sierra models with factory or aftermarket navigation. This kit comes complete with factory tailgate bezel with integrated Panasonic wide-angle camera and tailgate lock option, shielded harnesses
Included:
NOT Included:
NOT Included:
NOT Included:
NOT Included: This very versatile backup camera mounts literally anywhere.
150° color CMOS camera of dimensions 23.4(w) x 23.4(h) x 28.8(l) mm.
Specs: Pixels: NTSC 720(H)*486(V)
Sensor: 1/4″ CMOS Color Sensor
Sync. System: Internal
Resolution: 300 TVL
Minimum illumination: 20 IRE / 2 LUX
S/N ratio: More than 43dB
Gamma correction: 0.45
Gain control: AGC
Video output: 1.0Vp-p composite video. 75(OHM) load
Operation temp: -20°C TO 70°C
Operational humidity: Within85% RH
Supply voltage: DC12V (+/-5%) , 80mA(Max)
Water Proof: IP 68
View Angle: D150° H136° V115°.
Included:
NOT Included:
Included:
NOT Included: HomeLink® capable with rear camera display, autodimming, Amber PRNDL light and Compass
Eliminate dangerous glare from the vehicles traveling behind you with an NVS® rearview mirror. It detects glare and automatically dims to preserve driver vision and make nighttime driving safer. The brighter the glare, the darker the mirror becomes.
An ICE indicator will display for one minute when the temperature is at or below 37 degrees. This feature cautions you to anticipate road-icing conditions.
Compass and external temperature readouts also ensure that while you are driving safer you are also driving smarter.
Included:
NOT Included:
Vehicle-specific Notes:The patented 307K pixel STM5600D delivers a clear, bright picture. It’s the first LED DIGITAL rear view monitor in the industry. It features 3 camera inputs along with A/V out for recording. The STM5600D features advanced Rearview System’s technology allowing the STM5600D to endure high vibration and cold weather as well as heat. Therefore lasting up to 5 times longer than other rear view monitors. The STM5600D features on screen programming, day/night mode, RCA input/output jacks and tilt and swivel monitor mount. Our number one seller for utility company fleets.
What really sets this back up camera system apart from other brands is the CC77 color camera. Unlike most other brands, Rearview Systems only uses the best color image sensor. Our color cameras are built with the Sony Super HAD 1/3″ CCD image sensor. No other image sensors comes close for picture quality and low light picture enhancement.
Only Rearview Systems cameras feature ULTRA BRIGHT infra-red LEDs for enhanced low light picture quality. These LEDs broadcast twice the amount of infra-red light as normal cameras. The CC77 is heavy duty too. Unlike other brands that claim to be “weatherproof” or “water- proof” the CC77 features reinforced gaskets to make it waterproof even when pressure washing! The CC77 can handle vibration with it’s 10G rating! A bonus feature for the CC77 is abuilt-in camera heater for winter driving. Heater is automatically activated at 32 degrees F (OPERATING RANGE -58F to 140F). Two year warranty on all parts. All installation hardware is included. Have questions or need FLEET PRICING please call us.
NOT Included: Display Technology — The liquid crystal display (LCD) appears through the mirror’s reflective surface via Gentex’s proprietary “transflective” coatings and lighting techniques. The result is a bright, high-resolution display in an intuitive location. The display is driven by a camera located at the rear of the vehicle, and is displayed on the left side of the mirror.
Safety and Convenience* – From a safety perspective, the Rear Camera Display Mirror should help reduce the risk of backup accidents, especially for vehicles with limited rear vision. Another benefit is the convenience associated with hooking up to boats, RVs and utility trailers.
Other Benefits – For car dealers, the Gentex video display technology is quick-to-market, easy to install and service, relatively low cost, and offers a seamless enhancement to the auto-dimming rearview mirror.
*Please note that the video display mirror is intended to be used as a supplemental device for drivers and does not eliminate the need to check rearview mirrors or walk around the vehicle, should conditions warrant. When it comes to backing up safely, nothing beats walking around the vehicle prior to moving it.
Included:
NOT Included:
Vehicle-specific Notes:
Included:Due to advances in digital technology, the new Advent PSD-100 Sensor System is the clear leader in the field and will now operate in the front or rear of a vehicle and has one of the most innovative and useful features ever introduced in the category: the unit uses flash memory to remember obstacles stationary on the automobile, such as a tire cover or bicycle rack when used in the rear mode, meaning drivers can now program and reprogram the system as the vehicle’s accessories change and help avoid unneccessary false alarms!
The system detects obstacles more than six feet away from the bumper. Its extended range gives drivers enough time to safely stop the vehicle before hitting the object. When installed in a front mounted application, sensors detect obstacles that are moving toward the front of the vehicle as they get closer, eliminating false warnings while stopped at traffic lights or in other situations.
The PSD-100 comes with a MUTE button to allow temporary override of warnings in heavy rain or snow, or in trailering situations that aren’t yet programmed to avoid falsing. The unit comes packaged with four black paintable sensors. Optional anodized chrome sensors are available, designed to match today’s chrome bumpers. The unit comes with a three year warranty.
The PSD-100 is a TWO SENSOR SYSTEM ONLY designed for front use or rear use. A full four sensor system rear bumper system will consist of the PSD-100 base two sensor system and the PSD-200 two sensor add-on sensors.
Polished chrome camera mounts above license plate and features adjustable camera angle for universal applications. FITS ROSEN NAVIGATION HEADUNITS ONLY
Included:Molded polycarbonate body makes for a very clean look and built-in mounting tabs allow for flexible mounting and ease of installation. ONLY FOR USE WITH ROSEN NAVIGATION UNITS
